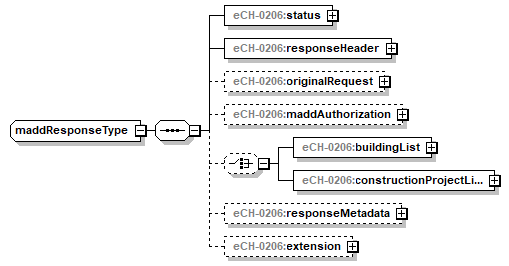

complexType maddResponseType
diagram index_p150.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
children eCH-0206:status eCH-0206:responseHeader eCH-0206:originalRequest eCH-0206:maddAuthorization eCH-0206:buildingList eCH-0206:constructionProjectList eCH-0206:responseMetadata eCH-0206:extension
used by
element maddResponse
source <xs:complexType name="maddResponseType">
  <xs:sequence>
    <xs:element name="status">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="code">
            <xs:simpleType>
              <xs:restriction base="xs:positiveInteger">
                <xs:minInclusive value="100"/>
                <xs:maxInclusive value="999"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:element>
          <xs:element name="message">
            <xs:simpleType>
              <xs:restriction base="xs:token">
                <xs:maxLength value="10000"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="responseHeader">
      <xs:complexType>
        <xs:complexContent>
          <xs:extension base="eCH-0206:responseHeaderType"/>
        </xs:complexContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="originalRequest" type="eCH-0206:maddRequestType" minOccurs="0"/>
    <xs:element name="maddAuthorization" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="maddId">
            <xs:simpleType>
              <xs:restriction base="xs:string">
                <xs:pattern value="anonymous|MADD-2[0-9][0-9][0-9](0[1-9]|1[012])([0-2][0-9]|3[01])-(A[0-9]|B[0-9]{2}|[C-Z][0-9]{3,26})"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:element>
          <xs:element name="maddDataSet" type="xs:positiveInteger"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:choice minOccurs="0">
      <xs:element name="buildingList">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="buildingItem" maxOccurs="99999999">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="EGID" type="eCH-0129:EGIDType"/>
                  <xs:element name="building" type="eCH-0206:buildingType"/>
                  <xs:element name="buildingEntranceList">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="buildingEntranceItem" maxOccurs="91">
                          <xs:complexType>
                            <xs:sequence>
                              <xs:element name="EDID" type="eCH-0129:EDIDType"/>
                              <xs:element name="buildingEntrance" type="eCH-0206:buildingEntranceType" minOccurs="0"/>
                              <xs:element name="dwellingList" minOccurs="0">
                                <xs:complexType>
                                  <xs:sequence>
                                    <xs:element name="dwellingItem" maxOccurs="900">
                                      <xs:complexType>
                                        <xs:sequence>
                                          <xs:element name="EWID" type="eCH-0129:EWIDType"/>
                                          <xs:element name="dwelling" type="eCH-0206:dwellingType"/>
                                          <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" minOccurs="0"/>
                                          <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
                                        </xs:sequence>
                                      </xs:complexType>
                                    </xs:element>
                                  </xs:sequence>
                                </xs:complexType>
                              </xs:element>
                              <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
                            </xs:sequence>
                          </xs:complexType>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                  <xs:element name="municipality" type="eCH-0206:swissMunicipalityType"/>
                  <xs:element name="constructionWorkList" type="eCH-0206:constructionWorkListType" minOccurs="0"/>
                  <xs:element name="realestateIdentificationList" minOccurs="0">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" maxOccurs="99999999"/>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                  <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="constructionProjectList">
        <xs:complexType>
          <xs:sequence>

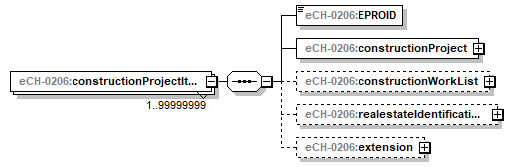

            <xs:element name="constructionProjectItem" maxOccurs="99999999">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="EPROID" type="eCH-0129:EPROIDType"/>
                  <xs:element name="constructionProject" type="eCH-0206:constructionProjectType"/>
                  <xs:element name="constructionWorkList" type="eCH-0206:constructionWorkListType" minOccurs="0"/>
                  <xs:element name="realestateIdentificationList" minOccurs="0">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" maxOccurs="99999999"/>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                  <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
    <xs:element name="responseMetadata" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="statisticsList" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="statisticsItem" maxOccurs="99">
                  <xs:complexType>
                    <xs:sequence>
                      <xs:element name="objectType">
                        <xs:simpleType>
                          <xs:restriction base="xs:NMTOKEN">
                            <xs:maxLength value="64"/>
                          </xs:restriction>
                        </xs:simpleType>
                      </xs:element>
                      <xs:element name="objectCount" type="xs:nonNegativeInteger"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="lastUpdateDate" type="xs:dateTime"/>
          <xs:element name="exportDate" type="xs:dateTime"/>
          <xs:element name="remarkList" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="remarkItem" maxOccurs="9999">
                  <xs:simpleType>
                    <xs:restriction base="xs:token">
                      <xs:maxLength value="9999"/>
                    </xs:restriction>
                  </xs:simpleType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element maddResponseType/status
diagram index_p151.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
content complex
children eCH-0206:code eCH-0206:message
source <xs:element name="status">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="code">
        <xs:simpleType>
          <xs:restriction base="xs:positiveInteger">
            <xs:minInclusive value="100"/>
            <xs:maxInclusive value="999"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="message">
        <xs:simpleType>
          <xs:restriction base="xs:token">
            <xs:maxLength value="10000"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/status/code
diagram index_p152.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type restriction of xs:positiveInteger
properties
content simple
facets
Kind Value Annotation
minInclusive 100
maxInclusive 999
source <xs:element name="code">
  <xs:simpleType>
    <xs:restriction base="xs:positiveInteger">
      <xs:minInclusive value="100"/>
      <xs:maxInclusive value="999"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element maddResponseType/status/message
diagram index_p153.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type restriction of xs:token
properties
content simple
facets
Kind Value Annotation
maxLength 10000
source <xs:element name="message">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:maxLength value="10000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

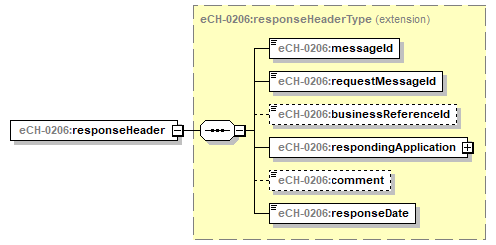

element maddResponseType/responseHeader
diagram index_p154.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type extension of eCH-0206:responseHeaderType
properties
content complex
children eCH-0206:messageId eCH-0206:requestMessageId eCH-0206:businessReferenceId eCH-0206:respondingApplication eCH-0206:comment eCH-0206:responseDate
source <xs:element name="responseHeader">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="eCH-0206:responseHeaderType"/>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

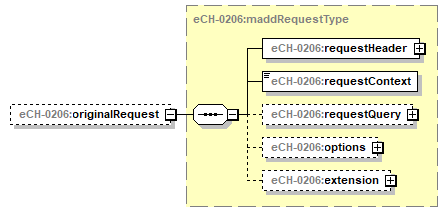

element maddResponseType/originalRequest
diagram index_p155.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:maddRequestType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:requestHeader eCH-0206:requestContext eCH-0206:requestQuery eCH-0206:options eCH-0206:extension
source <xs:element name="originalRequest" type="eCH-0206:maddRequestType" minOccurs="0"/>

element maddResponseType/maddAuthorization
diagram index_p156.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:maddId eCH-0206:maddDataSet
source <xs:element name="maddAuthorization" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="maddId">
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:pattern value="anonymous|MADD-2[0-9][0-9][0-9](0[1-9]|1[012])([0-2][0-9]|3[01])-(A[0-9]|B[0-9]{2}|[C-Z][0-9]{3,26})"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="maddDataSet" type="xs:positiveInteger"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/maddAuthorization/maddId
diagram index_p157.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type restriction of xs:string
properties
content simple
facets
Kind Value Annotation
pattern anonymous|MADD-2[0-9][0-9][0-9](0[1-9]|1[012])([0-2][0-9]|3[01])-(A[0-9]|B[0-9]{2}|[C-Z][0-9]{3,26})
source <xs:element name="maddId">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:pattern value="anonymous|MADD-2[0-9][0-9][0-9](0[1-9]|1[012])([0-2][0-9]|3[01])-(A[0-9]|B[0-9]{2}|[C-Z][0-9]{3,26})"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element maddResponseType/maddAuthorization/maddDataSet
diagram index_p158.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:positiveInteger
properties
content simple
source <xs:element name="maddDataSet" type="xs:positiveInteger"/>

element maddResponseType/buildingList
diagram index_p159.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
content complex
children eCH-0206:buildingItem
source <xs:element name="buildingList">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="buildingItem" maxOccurs="99999999">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="EGID" type="eCH-0129:EGIDType"/>

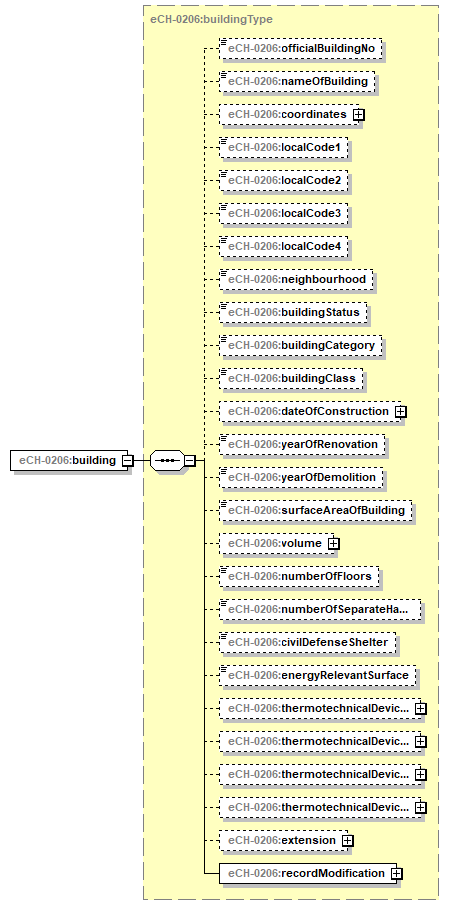

            <xs:element name="building" type="eCH-0206:buildingType"/>
            <xs:element name="buildingEntranceList">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="buildingEntranceItem" maxOccurs="91">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="EDID" type="eCH-0129:EDIDType"/>

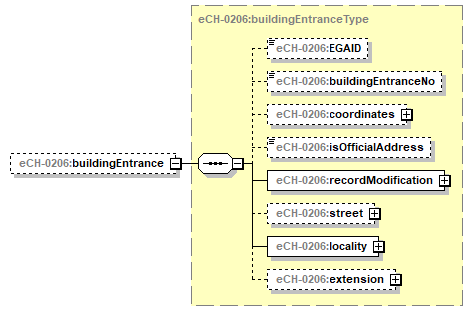

                        <xs:element name="buildingEntrance" type="eCH-0206:buildingEntranceType" minOccurs="0"/>
                        <xs:element name="dwellingList" minOccurs="0">
                          <xs:complexType>
                            <xs:sequence>

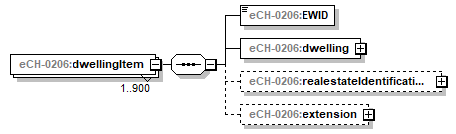

                              <xs:element name="dwellingItem" maxOccurs="900">
                                <xs:complexType>
                                  <xs:sequence>
                                    <xs:element name="EWID" type="eCH-0129:EWIDType"/>
                                    <xs:element name="dwelling" type="eCH-0206:dwellingType"/>

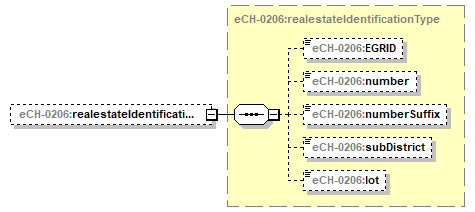

                                    <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" minOccurs="0"/>
                                    <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
                                  </xs:sequence>
                                </xs:complexType>
                              </xs:element>
                            </xs:sequence>
                          </xs:complexType>
                        </xs:element>
                        <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="municipality" type="eCH-0206:swissMunicipalityType"/>
            <xs:element name="constructionWorkList" type="eCH-0206:constructionWorkListType" minOccurs="0"/>
            <xs:element name="realestateIdentificationList" minOccurs="0">
              <xs:complexType>
                <xs:sequence>

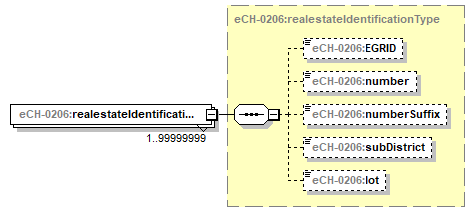

                  <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" maxOccurs="99999999"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

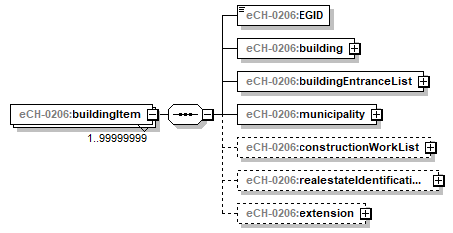

element maddResponseType/buildingList/buildingItem
diagram index_p160.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 1
maxOcc 99999999
content complex
children eCH-0206:EGID eCH-0206:building eCH-0206:buildingEntranceList eCH-0206:municipality eCH-0206:constructionWorkList eCH-0206:realestateIdentificationList eCH-0206:extension
source <xs:element name="buildingItem" maxOccurs="99999999">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="EGID" type="eCH-0129:EGIDType"/>
      <xs:element name="building" type="eCH-0206:buildingType"/>
      <xs:element name="buildingEntranceList">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="buildingEntranceItem" maxOccurs="91">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="EDID" type="eCH-0129:EDIDType"/>
                  <xs:element name="buildingEntrance" type="eCH-0206:buildingEntranceType" minOccurs="0"/>
                  <xs:element name="dwellingList" minOccurs="0">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="dwellingItem" maxOccurs="900">
                          <xs:complexType>
                            <xs:sequence>
                              <xs:element name="EWID" type="eCH-0129:EWIDType"/>
                              <xs:element name="dwelling" type="eCH-0206:dwellingType"/>
                              <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" minOccurs="0"/>
                              <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
                            </xs:sequence>
                          </xs:complexType>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                  <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="municipality" type="eCH-0206:swissMunicipalityType"/>
      <xs:element name="constructionWorkList" type="eCH-0206:constructionWorkListType" minOccurs="0"/>
      <xs:element name="realestateIdentificationList" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" maxOccurs="99999999"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/buildingList/buildingItem/EGID
diagram index_p161.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:EGIDType
properties
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 900000000
source <xs:element name="EGID" type="eCH-0129:EGIDType"/>

element maddResponseType/buildingList/buildingItem/building
diagram index_p162.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:buildingType
properties
content complex
children eCH-0206:officialBuildingNo eCH-0206:nameOfBuilding eCH-0206:coordinates eCH-0206:localCode1 eCH-0206:localCode2 eCH-0206:localCode3 eCH-0206:localCode4 eCH-0206:neighbourhood eCH-0206:buildingStatus eCH-0206:buildingCategory eCH-0206:buildingClass eCH-0206:dateOfConstruction eCH-0206:yearOfRenovation eCH-0206:yearOfDemolition eCH-0206:surfaceAreaOfBuilding eCH-0206:volume eCH-0206:numberOfFloors eCH-0206:numberOfSeparateHabitableRooms eCH-0206:civilDefenseShelter eCH-0206:energyRelevantSurface eCH-0206:thermotechnicalDeviceForHeating1 eCH-0206:thermotechnicalDeviceForHeating2 eCH-0206:thermotechnicalDeviceForWarmWater1 eCH-0206:thermotechnicalDeviceForWarmWater2 eCH-0206:extension eCH-0206:recordModification
source <xs:element name="building" type="eCH-0206:buildingType"/>

element maddResponseType/buildingList/buildingItem/buildingEntranceList
diagram index_p163.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
content complex
children eCH-0206:buildingEntranceItem
source <xs:element name="buildingEntranceList">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="buildingEntranceItem" maxOccurs="91">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="EDID" type="eCH-0129:EDIDType"/>
            <xs:element name="buildingEntrance" type="eCH-0206:buildingEntranceType" minOccurs="0"/>
            <xs:element name="dwellingList" minOccurs="0">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="dwellingItem" maxOccurs="900">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="EWID" type="eCH-0129:EWIDType"/>
                        <xs:element name="dwelling" type="eCH-0206:dwellingType"/>
                        <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" minOccurs="0"/>
                        <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

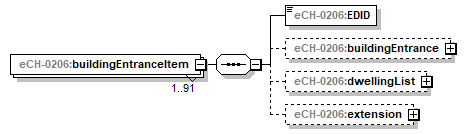

element maddResponseType/buildingList/buildingItem/buildingEntranceList/buildingEntranceItem
diagram index_p164.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 1
maxOcc 91
content complex
children eCH-0206:EDID eCH-0206:buildingEntrance eCH-0206:dwellingList eCH-0206:extension
source <xs:element name="buildingEntranceItem" maxOccurs="91">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="EDID" type="eCH-0129:EDIDType"/>
      <xs:element name="buildingEntrance" type="eCH-0206:buildingEntranceType" minOccurs="0"/>
      <xs:element name="dwellingList" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="dwellingItem" maxOccurs="900">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="EWID" type="eCH-0129:EWIDType"/>
                  <xs:element name="dwelling" type="eCH-0206:dwellingType"/>
                  <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" minOccurs="0"/>
                  <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/buildingList/buildingItem/buildingEntranceList/buildingEntranceItem/EDID
diagram index_p165.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:EDIDType
properties
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 90
source <xs:element name="EDID" type="eCH-0129:EDIDType"/>

element maddResponseType/buildingList/buildingItem/buildingEntranceList/buildingEntranceItem/buildingEntrance
diagram index_p166.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:buildingEntranceType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:EGAID eCH-0206:buildingEntranceNo eCH-0206:coordinates eCH-0206:isOfficialAddress eCH-0206:recordModification eCH-0206:street eCH-0206:locality eCH-0206:extension
source <xs:element name="buildingEntrance" type="eCH-0206:buildingEntranceType" minOccurs="0"/>

element maddResponseType/buildingList/buildingItem/buildingEntranceList/buildingEntranceItem/dwellingList
diagram index_p167.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:dwellingItem
source <xs:element name="dwellingList" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="dwellingItem" maxOccurs="900">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="EWID" type="eCH-0129:EWIDType"/>
            <xs:element name="dwelling" type="eCH-0206:dwellingType"/>
            <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" minOccurs="0"/>
            <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/buildingList/buildingItem/buildingEntranceList/buildingEntranceItem/dwellingList/dwellingItem
diagram index_p168.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 1
maxOcc 900
content complex
children eCH-0206:EWID eCH-0206:dwelling eCH-0206:realestateIdentificationItem eCH-0206:extension
source <xs:element name="dwellingItem" maxOccurs="900">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="EWID" type="eCH-0129:EWIDType"/>
      <xs:element name="dwelling" type="eCH-0206:dwellingType"/>
      <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" minOccurs="0"/>
      <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/buildingList/buildingItem/buildingEntranceList/buildingEntranceItem/dwellingList/dwellingItem/EWID
diagram index_p169.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:EWIDType
properties
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 900
source <xs:element name="EWID" type="eCH-0129:EWIDType"/>

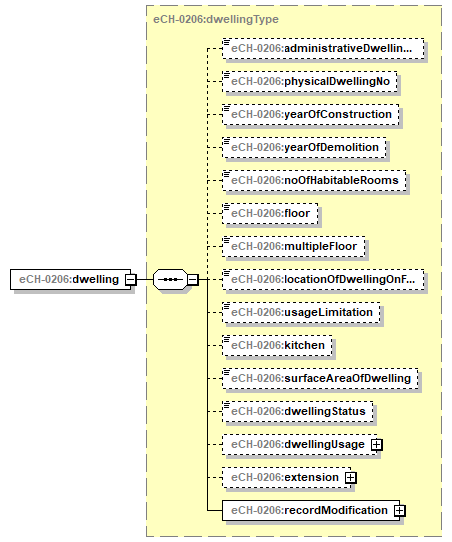

element maddResponseType/buildingList/buildingItem/buildingEntranceList/buildingEntranceItem/dwellingList/dwellingItem/dwelling
diagram index_p170.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:dwellingType
properties
content complex
children eCH-0206:administrativeDwellingNo eCH-0206:physicalDwellingNo eCH-0206:yearOfConstruction eCH-0206:yearOfDemolition eCH-0206:noOfHabitableRooms eCH-0206:floor eCH-0206:multipleFloor eCH-0206:locationOfDwellingOnFloor eCH-0206:usageLimitation eCH-0206:kitchen eCH-0206:surfaceAreaOfDwelling eCH-0206:dwellingStatus eCH-0206:dwellingUsage eCH-0206:extension eCH-0206:recordModification
source <xs:element name="dwelling" type="eCH-0206:dwellingType"/>

element maddResponseType/buildingList/buildingItem/buildingEntranceList/buildingEntranceItem/dwellingList/dwellingItem/realestateIdentificationItem
diagram index_p171.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:realestateIdentificationType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:EGRID eCH-0206:number eCH-0206:numberSuffix eCH-0206:subDistrict eCH-0206:lot
source <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" minOccurs="0"/>

element maddResponseType/buildingList/buildingItem/buildingEntranceList/buildingEntranceItem/dwellingList/dwellingItem/extension
diagram index_p172.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:extensionType
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>

element maddResponseType/buildingList/buildingItem/buildingEntranceList/buildingEntranceItem/extension
diagram index_p173.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:extensionType
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>

element maddResponseType/buildingList/buildingItem/municipality
diagram index_p174.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:swissMunicipalityType
properties
content complex
children eCH-0206:municipalityId eCH-0206:municipalityName eCH-0206:cantonAbbreviation
source <xs:element name="municipality" type="eCH-0206:swissMunicipalityType"/>

element maddResponseType/buildingList/buildingItem/constructionWorkList
diagram index_p175.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:constructionWorkListType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:constructionWorkItem
source <xs:element name="constructionWorkList" type="eCH-0206:constructionWorkListType" minOccurs="0"/>

element maddResponseType/buildingList/buildingItem/realestateIdentificationList
diagram index_p176.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:realestateIdentificationItem
source <xs:element name="realestateIdentificationList" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" maxOccurs="99999999"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/buildingList/buildingItem/realestateIdentificationList/realestateIdentificationItem
diagram index_p177.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:realestateIdentificationType
properties
minOcc 1
maxOcc 99999999
content complex
children eCH-0206:EGRID eCH-0206:number eCH-0206:numberSuffix eCH-0206:subDistrict eCH-0206:lot
source <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" maxOccurs="99999999"/>

element maddResponseType/buildingList/buildingItem/extension
diagram index_p178.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:extensionType
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>

element maddResponseType/constructionProjectList
diagram index_p179.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
content complex
children eCH-0206:constructionProjectItem
source <xs:element name="constructionProjectList">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="constructionProjectItem" maxOccurs="99999999">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="EPROID" type="eCH-0129:EPROIDType"/>
            <xs:element name="constructionProject" type="eCH-0206:constructionProjectType"/>
            <xs:element name="constructionWorkList" type="eCH-0206:constructionWorkListType" minOccurs="0"/>
            <xs:element name="realestateIdentificationList" minOccurs="0">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" maxOccurs="99999999"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/constructionProjectList/constructionProjectItem
diagram index_p180.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 1
maxOcc 99999999
content complex
children eCH-0206:EPROID eCH-0206:constructionProject eCH-0206:constructionWorkList eCH-0206:realestateIdentificationList eCH-0206:extension
source <xs:element name="constructionProjectItem" maxOccurs="99999999">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="EPROID" type="eCH-0129:EPROIDType"/>
      <xs:element name="constructionProject" type="eCH-0206:constructionProjectType"/>
      <xs:element name="constructionWorkList" type="eCH-0206:constructionWorkListType" minOccurs="0"/>
      <xs:element name="realestateIdentificationList" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" maxOccurs="99999999"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/constructionProjectList/constructionProjectItem/EPROID
diagram index_p181.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:EPROIDType
properties
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 900000000
source <xs:element name="EPROID" type="eCH-0129:EPROIDType"/>

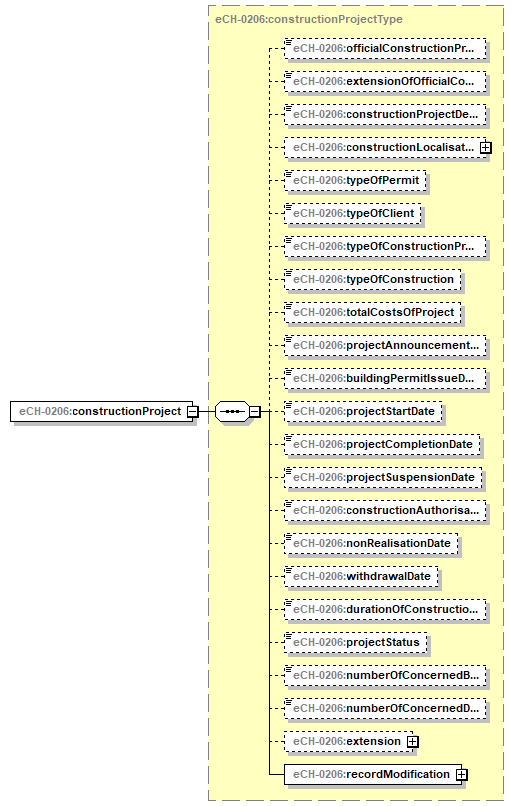

element maddResponseType/constructionProjectList/constructionProjectItem/constructionProject
diagram index_p182.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:constructionProjectType
properties
content complex
children eCH-0206:officialConstructionProjectFileNo eCH-0206:extensionOfOfficialConstructionProjectFileNo eCH-0206:constructionProjectDescription eCH-0206:constructionLocalisation eCH-0206:typeOfPermit eCH-0206:typeOfClient eCH-0206:typeOfConstructionProject eCH-0206:typeOfConstruction eCH-0206:totalCostsOfProject eCH-0206:projectAnnouncementDate eCH-0206:buildingPermitIssueDate eCH-0206:projectStartDate eCH-0206:projectCompletionDate eCH-0206:projectSuspensionDate eCH-0206:constructionAuthorisationDeniedDate eCH-0206:nonRealisationDate eCH-0206:withdrawalDate eCH-0206:durationOfConstructionPhase eCH-0206:projectStatus eCH-0206:numberOfConcernedBuildings eCH-0206:numberOfConcernedDwellings eCH-0206:extension eCH-0206:recordModification
source <xs:element name="constructionProject" type="eCH-0206:constructionProjectType"/>

element maddResponseType/constructionProjectList/constructionProjectItem/constructionWorkList
diagram index_p183.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:constructionWorkListType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:constructionWorkItem
source <xs:element name="constructionWorkList" type="eCH-0206:constructionWorkListType" minOccurs="0"/>

element maddResponseType/constructionProjectList/constructionProjectItem/realestateIdentificationList
diagram index_p184.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:realestateIdentificationItem
source <xs:element name="realestateIdentificationList" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" maxOccurs="99999999"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/constructionProjectList/constructionProjectItem/realestateIdentificationList/realestateIdentificationItem
diagram index_p185.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:realestateIdentificationType
properties
minOcc 1
maxOcc 99999999
content complex
children eCH-0206:EGRID eCH-0206:number eCH-0206:numberSuffix eCH-0206:subDistrict eCH-0206:lot
source <xs:element name="realestateIdentificationItem" type="eCH-0206:realestateIdentificationType" maxOccurs="99999999"/>

element maddResponseType/constructionProjectList/constructionProjectItem/extension
diagram index_p186.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:extensionType
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>

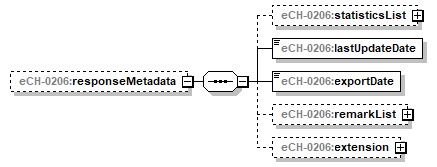

element maddResponseType/responseMetadata
diagram index_p187.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:statisticsList eCH-0206:lastUpdateDate eCH-0206:exportDate eCH-0206:remarkList eCH-0206:extension
source <xs:element name="responseMetadata" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="statisticsList" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="statisticsItem" maxOccurs="99">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="objectType">
                    <xs:simpleType>
                      <xs:restriction base="xs:NMTOKEN">
                        <xs:maxLength value="64"/>
                      </xs:restriction>
                    </xs:simpleType>
                  </xs:element>
                  <xs:element name="objectCount" type="xs:nonNegativeInteger"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="lastUpdateDate" type="xs:dateTime"/>
      <xs:element name="exportDate" type="xs:dateTime"/>
      <xs:element name="remarkList" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="remarkItem" maxOccurs="9999">
              <xs:simpleType>
                <xs:restriction base="xs:token">
                  <xs:maxLength value="9999"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/responseMetadata/statisticsList
diagram index_p188.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:statisticsItem
source <xs:element name="statisticsList" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="statisticsItem" maxOccurs="99">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="objectType">
              <xs:simpleType>
                <xs:restriction base="xs:NMTOKEN">
                  <xs:maxLength value="64"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="objectCount" type="xs:nonNegativeInteger"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/responseMetadata/statisticsList/statisticsItem
diagram index_p189.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 1
maxOcc 99
content complex
children eCH-0206:objectType eCH-0206:objectCount
source <xs:element name="statisticsItem" maxOccurs="99">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="objectType">
        <xs:simpleType>
          <xs:restriction base="xs:NMTOKEN">
            <xs:maxLength value="64"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="objectCount" type="xs:nonNegativeInteger"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/responseMetadata/statisticsList/statisticsItem/objectType
diagram index_p190.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type restriction of xs:NMTOKEN
properties
content simple
facets
Kind Value Annotation
maxLength 64
source <xs:element name="objectType">
  <xs:simpleType>
    <xs:restriction base="xs:NMTOKEN">
      <xs:maxLength value="64"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element maddResponseType/responseMetadata/statisticsList/statisticsItem/objectCount
diagram index_p191.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:nonNegativeInteger
properties
content simple
source <xs:element name="objectCount" type="xs:nonNegativeInteger"/>

element maddResponseType/responseMetadata/lastUpdateDate
diagram index_p192.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:dateTime
properties
content simple
source <xs:element name="lastUpdateDate" type="xs:dateTime"/>

element maddResponseType/responseMetadata/exportDate
diagram index_p193.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:dateTime
properties
content simple
source <xs:element name="exportDate" type="xs:dateTime"/>

element maddResponseType/responseMetadata/remarkList
diagram index_p194.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:remarkItem
source <xs:element name="remarkList" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="remarkItem" maxOccurs="9999">
        <xs:simpleType>
          <xs:restriction base="xs:token">
            <xs:maxLength value="9999"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddResponseType/responseMetadata/remarkList/remarkItem
diagram index_p195.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type restriction of xs:token
properties
minOcc 1
maxOcc 9999
content simple
facets
Kind Value Annotation
maxLength 9999
source <xs:element name="remarkItem" maxOccurs="9999">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:maxLength value="9999"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element maddResponseType/responseMetadata/extension
diagram index_p196.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:extensionType
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>

element maddResponseType/extension
diagram index_p197.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:extensionType
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
