complexType buildingEntranceType

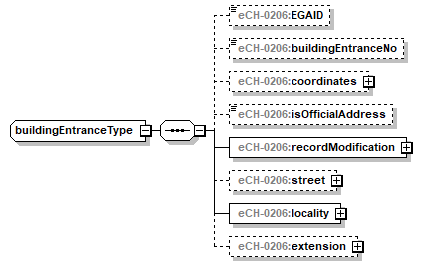

diagram index_p6.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
children eCH-0206:EGAID eCH-0206:buildingEntranceNo eCH-0206:coordinates eCH-0206:isOfficialAddress eCH-0206:recordModification eCH-0206:street eCH-0206:locality eCH-0206:extension
used by
element maddResponseType/buildingList/buildingItem/buildingEntranceList/buildingEntranceItem/buildingEntrance
source <xs:complexType name="buildingEntranceType">
  <xs:sequence>
    <xs:element name="EGAID" type="eCH-0129:EGAIDType" minOccurs="0"/>
    <xs:element name="buildingEntranceNo" type="eCH-0129:buildingEntranceNoType" minOccurs="0"/>
    <xs:element name="coordinates" type="eCH-0206:coordinatesEntranceType" minOccurs="0"/>
    <xs:element name="isOfficialAddress" type="xs:boolean" minOccurs="0"/>
    <xs:element name="recordModification" type="eCH-0206:recordModificationType"/>
    <xs:element name="street" type="eCH-0206:streetType" minOccurs="0"/>
    <xs:element name="locality" type="eCH-0206:localityType"/>
    <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element buildingEntranceType/EGAID
diagram index_p7.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:EGAIDType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 100000000
maxInclusive 900000000
source <xs:element name="EGAID" type="eCH-0129:EGAIDType" minOccurs="0"/>

element buildingEntranceType/buildingEntranceNo
diagram index_p8.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:buildingEntranceNoType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 12
source <xs:element name="buildingEntranceNo" type="eCH-0129:buildingEntranceNoType" minOccurs="0"/>

element buildingEntranceType/coordinates

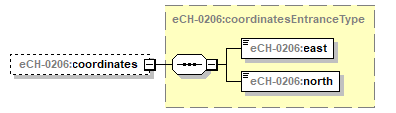

diagram index_p9.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:coordinatesEntranceType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:east eCH-0206:north
source <xs:element name="coordinates" type="eCH-0206:coordinatesEntranceType" minOccurs="0"/>

element buildingEntranceType/isOfficialAddress
diagram index_p10.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="isOfficialAddress" type="xs:boolean" minOccurs="0"/>

element buildingEntranceType/recordModification

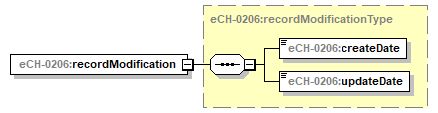

diagram index_p11.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:recordModificationType
properties
content complex
children eCH-0206:createDate eCH-0206:updateDate
source <xs:element name="recordModification" type="eCH-0206:recordModificationType"/>

element buildingEntranceType/street

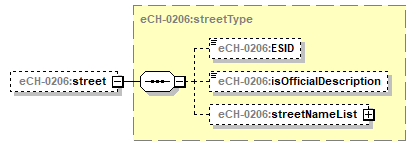

diagram index_p12.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:streetType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:ESID eCH-0206:isOfficialDescription eCH-0206:streetNameList
source <xs:element name="street" type="eCH-0206:streetType" minOccurs="0"/>

element buildingEntranceType/locality
diagram index_p13.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:localityType
properties
content complex
children eCH-0206:swissZipCode eCH-0206:swissZipCodeAddOn eCH-0206:placeName
source <xs:element name="locality" type="eCH-0206:localityType"/>

element buildingEntranceType/extension
diagram index_p14.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:extensionType
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
