complexType localityType

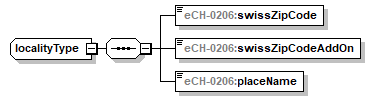

diagram index_p130.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
children eCH-0206:swissZipCode eCH-0206:swissZipCodeAddOn eCH-0206:placeName
used by
element buildingEntranceType/locality
source <xs:complexType name="localityType">
  <xs:sequence>
    <xs:element name="swissZipCode" type="eCH-0010:swissZipCodeType"/>
    <xs:element name="swissZipCodeAddOn" type="eCH-0010:swissZipCodeAddOnType"/>
    <xs:element name="placeName">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:minLength value="2"/>
          <xs:maxLength value="40"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element localityType/swissZipCode
diagram index_p131.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0010:swissZipCodeType
properties
content simple
facets
Kind Value Annotation
minInclusive 1000
maxInclusive 9999
source <xs:element name="swissZipCode" type="eCH-0010:swissZipCodeType"/>

element localityType/swissZipCodeAddOn
diagram index_p132.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0010:swissZipCodeAddOnType
properties
content simple
facets
Kind Value Annotation
maxLength 2
source <xs:element name="swissZipCodeAddOn" type="eCH-0010:swissZipCodeAddOnType"/>

element localityType/placeName
diagram index_p133.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type restriction of xs:token
properties
content simple
facets
Kind Value Annotation
minLength 2
maxLength 40
source <xs:element name="placeName">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:minLength value="2"/>
      <xs:maxLength value="40"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
