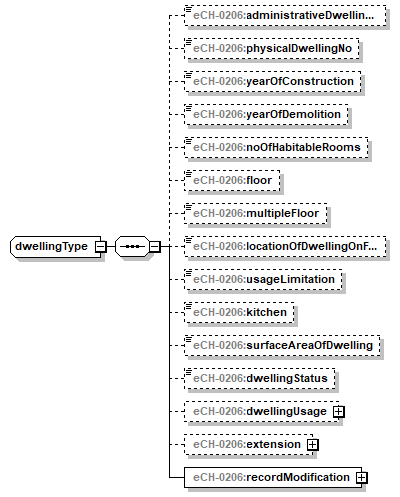

complexType dwellingType
diagram index_p87.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
children eCH-0206:administrativeDwellingNo eCH-0206:physicalDwellingNo eCH-0206:yearOfConstruction eCH-0206:yearOfDemolition eCH-0206:noOfHabitableRooms eCH-0206:floor eCH-0206:multipleFloor eCH-0206:locationOfDwellingOnFloor eCH-0206:usageLimitation eCH-0206:kitchen eCH-0206:surfaceAreaOfDwelling eCH-0206:dwellingStatus eCH-0206:dwellingUsage eCH-0206:extension eCH-0206:recordModification
used by
element maddResponseType/buildingList/buildingItem/buildingEntranceList/buildingEntranceItem/dwellingList/dwellingItem/dwelling
source <xs:complexType name="dwellingType">
  <xs:sequence>
    <xs:element name="administrativeDwellingNo" type="eCH-0129:administrativeDwellingNoType" minOccurs="0"/>
    <xs:element name="physicalDwellingNo" type="eCH-0129:physicalDwellingNoType" minOccurs="0"/>
    <xs:element name="yearOfConstruction" type="xs:gYear" minOccurs="0"/>
    <xs:element name="yearOfDemolition" type="xs:gYear" minOccurs="0"/>
    <xs:element name="noOfHabitableRooms" type="eCH-0129:noOfHabitableRoomsType" minOccurs="0"/>
    <xs:element name="floor" type="eCH-0129:floorType" minOccurs="0"/>
    <xs:element name="multipleFloor" type="eCH-0129:multipleFloorType" minOccurs="0"/>
    <xs:element name="locationOfDwellingOnFloor" type="eCH-0129:locationOfDwellingOnFloorType" minOccurs="0"/>
    <xs:element name="usageLimitation" type="eCH-0129:usageLimitationType" minOccurs="0"/>
    <xs:element name="kitchen" type="eCH-0129:kitchenType" minOccurs="0"/>
    <xs:element name="surfaceAreaOfDwelling" type="eCH-0129:surfaceAreaOfDwellingType" minOccurs="0"/>
    <xs:element name="dwellingStatus" type="eCH-0129:dwellingStatusType" minOccurs="0"/>
    <xs:element name="dwellingUsage" type="eCH-0129:dwellingUsageType" minOccurs="0"/>
    <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
    <xs:element name="recordModification" type="eCH-0206:recordModificationType"/>
  </xs:sequence>
</xs:complexType>

element dwellingType/administrativeDwellingNo
diagram index_p88.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:administrativeDwellingNoType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 12
source <xs:element name="administrativeDwellingNo" type="eCH-0129:administrativeDwellingNoType" minOccurs="0"/>

element dwellingType/physicalDwellingNo
diagram index_p89.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:physicalDwellingNoType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 12
source <xs:element name="physicalDwellingNo" type="eCH-0129:physicalDwellingNoType" minOccurs="0"/>

element dwellingType/yearOfConstruction
diagram index_p90.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:gYear
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="yearOfConstruction" type="xs:gYear" minOccurs="0"/>

element dwellingType/yearOfDemolition
diagram index_p91.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:gYear
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="yearOfDemolition" type="xs:gYear" minOccurs="0"/>

element dwellingType/noOfHabitableRooms
diagram index_p92.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:noOfHabitableRoomsType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 99
source <xs:element name="noOfHabitableRooms" type="eCH-0129:noOfHabitableRoomsType" minOccurs="0"/>

element dwellingType/floor
diagram index_p93.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:floorType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 3100
maxInclusive 3419
source <xs:element name="floor" type="eCH-0129:floorType" minOccurs="0"/>

element dwellingType/multipleFloor
diagram index_p94.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:multipleFloorType
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="multipleFloor" type="eCH-0129:multipleFloorType" minOccurs="0"/>

element dwellingType/locationOfDwellingOnFloor
diagram index_p95.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:locationOfDwellingOnFloorType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 3
maxLength 40
source <xs:element name="locationOfDwellingOnFloor" type="eCH-0129:locationOfDwellingOnFloorType" minOccurs="0"/>

element dwellingType/usageLimitation
diagram index_p96.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:usageLimitationType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 3401
enumeration 3402
enumeration 3403
enumeration 3404
source <xs:element name="usageLimitation" type="eCH-0129:usageLimitationType" minOccurs="0"/>

element dwellingType/kitchen
diagram index_p97.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:kitchenType
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="kitchen" type="eCH-0129:kitchenType" minOccurs="0"/>

element dwellingType/surfaceAreaOfDwelling
diagram index_p98.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:surfaceAreaOfDwellingType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 9999
source <xs:element name="surfaceAreaOfDwelling" type="eCH-0129:surfaceAreaOfDwellingType" minOccurs="0"/>

element dwellingType/dwellingStatus
diagram index_p99.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:dwellingStatusType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 3001
enumeration 3002
enumeration 3003
enumeration 3004
enumeration 3005
enumeration 3007
enumeration 3008
enumeration 3009
source <xs:element name="dwellingStatus" type="eCH-0129:dwellingStatusType" minOccurs="0"/>

element dwellingType/dwellingUsage
diagram index_p100.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:dwellingUsageType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0129:usageCode eCH-0129:informationSource eCH-0129:revisionDate eCH-0129:remark eCH-0129:personWithMainResidence eCH-0129:personWithSecondaryResidence eCH-0129:dateFirstOccupancy eCH-0129:dateLastOccupancy
source <xs:element name="dwellingUsage" type="eCH-0129:dwellingUsageType" minOccurs="0"/>

element dwellingType/extension
diagram index_p101.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:extensionType
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>

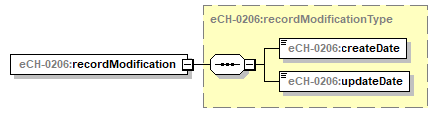

element dwellingType/recordModification
diagram index_p102.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:recordModificationType
properties
content complex
children eCH-0206:createDate eCH-0206:updateDate
source <xs:element name="recordModification" type="eCH-0206:recordModificationType"/>
