complexType dwellingUsageType

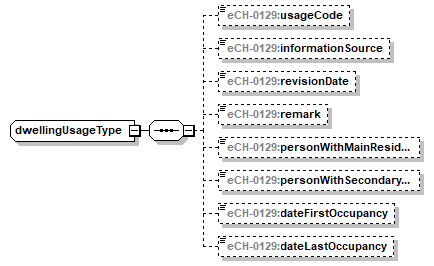

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
children	eCH-0129:usageCode eCH-0129:informationSource eCH-0129:revisionDate eCH-0129:remark eCH-0129:personWithMainResidence eCH-0129:personWithSecondaryResidence eCH-0129:dateFirstOccupancy eCH-0129:dateLastOccupancy
used by	elements  dwellingType/dwellingUsage dwellingType/dwellingUsage
source	<xs:complexType name="dwellingUsageType">   <xs:sequence>     <xs:element name="usageCode" type="eCH-0129:dwellingUsageCodeType" minOccurs="0"/>     <xs:element name="informationSource" type="eCH-0129:dwellingInformationSourceType" minOccurs="0"/>     <xs:element name="revisionDate" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:date">           <xs:minInclusive value="2012-12-31"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="remark" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:token">           <xs:minLength value="1"/>           <xs:maxLength value="2000"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="personWithMainResidence" type="xs:boolean" minOccurs="0"/>     <xs:element name="personWithSecondaryResidence" type="xs:boolean" minOccurs="0"/>     <xs:element name="dateFirstOccupancy" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:date">           <xs:minInclusive value="2012-12-31"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="dateLastOccupancy" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:date">           <xs:minInclusive value="2012-12-31"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element dwellingUsageType/usageCode

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	eCH-0129:dwellingUsageCodeType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  3010 enumeration  3020 enumeration  3030 enumeration  3031 enumeration  3032 enumeration  3033 enumeration  3034 enumeration  3035 enumeration  3036 enumeration  3037 enumeration  3038 enumeration  3070
source	<xs:element name="usageCode" type="eCH-0129:dwellingUsageCodeType" minOccurs="0"/>

element dwellingUsageType/informationSource

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	eCH-0129:dwellingInformationSourceType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  3090 enumeration  3091 enumeration  3092 enumeration  3093
source	<xs:element name="informationSource" type="eCH-0129:dwellingInformationSourceType" minOccurs="0"/>

element dwellingUsageType/revisionDate

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	restriction of xs:date
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  2012-12-31
source	<xs:element name="revisionDate" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:minInclusive value="2012-12-31"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element dwellingUsageType/remark

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	restriction of xs:token
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  2000
source	<xs:element name="remark" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:token">       <xs:minLength value="1"/>       <xs:maxLength value="2000"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element dwellingUsageType/personWithMainResidence

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="personWithMainResidence" type="xs:boolean" minOccurs="0"/>

element dwellingUsageType/personWithSecondaryResidence

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="personWithSecondaryResidence" type="xs:boolean" minOccurs="0"/>

element dwellingUsageType/dateFirstOccupancy

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	restriction of xs:date
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  2012-12-31
source	<xs:element name="dateFirstOccupancy" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:minInclusive value="2012-12-31"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element dwellingUsageType/dateLastOccupancy

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	restriction of xs:date
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  2012-12-31
source	<xs:element name="dateLastOccupancy" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:date">       <xs:minInclusive value="2012-12-31"/>     </xs:restriction>   </xs:simpleType> </xs:element>
