complexType dwellingType

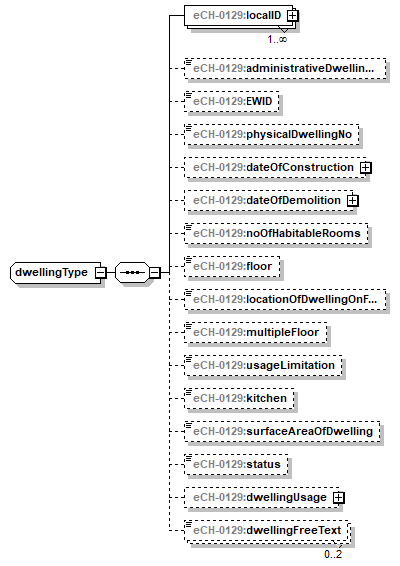

diagram index_p434.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:localID eCH-0129:administrativeDwellingNo eCH-0129:EWID eCH-0129:physicalDwellingNo eCH-0129:dateOfConstruction eCH-0129:dateOfDemolition eCH-0129:noOfHabitableRooms eCH-0129:floor eCH-0129:locationOfDwellingOnFloor eCH-0129:multipleFloor eCH-0129:usageLimitation eCH-0129:kitchen eCH-0129:surfaceAreaOfDwelling eCH-0129:status eCH-0129:dwellingUsage eCH-0129:dwellingFreeText
used by
element dwelling
source <xs:complexType name="dwellingType">
  <xs:sequence>
    <xs:element name="localID" type="eCH-0129:namedIdType" maxOccurs="unbounded"/>
    <xs:element name="administrativeDwellingNo" type="eCH-0129:administrativeDwellingNoType" minOccurs="0"/>
    <xs:element name="EWID" type="eCH-0129:EWIDType" minOccurs="0"/>
    <xs:element name="physicalDwellingNo" type="eCH-0129:physicalDwellingNoType" minOccurs="0"/>
    <xs:element name="dateOfConstruction" type="eCH-0129:datePartiallyKnownType" minOccurs="0"/>
    <xs:element name="dateOfDemolition" type="eCH-0129:datePartiallyKnownType" minOccurs="0"/>
    <xs:element name="noOfHabitableRooms" type="eCH-0129:noOfHabitableRoomsType" minOccurs="0"/>
    <xs:element name="floor" type="eCH-0129:floorType" minOccurs="0"/>
    <xs:element name="locationOfDwellingOnFloor" type="eCH-0129:locationOfDwellingOnFloorType" minOccurs="0"/>
    <xs:element name="multipleFloor" type="eCH-0129:multipleFloorType" minOccurs="0"/>
    <xs:element name="usageLimitation" type="eCH-0129:usageLimitationType" minOccurs="0"/>
    <xs:element name="kitchen" type="eCH-0129:kitchenType" minOccurs="0"/>
    <xs:element name="surfaceAreaOfDwelling" type="eCH-0129:surfaceAreaOfDwellingType" minOccurs="0"/>
    <xs:element name="status" type="eCH-0129:dwellingStatusType" minOccurs="0"/>
    <xs:element name="dwellingUsage" type="eCH-0129:dwellingUsageType" minOccurs="0"/>
    <xs:element name="dwellingFreeText" type="eCH-0129:freeTextType" minOccurs="0" maxOccurs="2"/>
  </xs:sequence>
</xs:complexType>

element dwellingType/localID

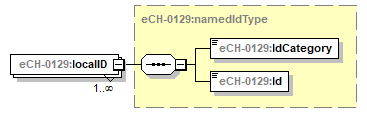

diagram index_p435.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:namedIdType
properties
minOcc 1
maxOcc unbounded
content complex
children eCH-0129:IdCategory eCH-0129:Id
source <xs:element name="localID" type="eCH-0129:namedIdType" maxOccurs="unbounded"/>

element dwellingType/administrativeDwellingNo
diagram index_p436.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:administrativeDwellingNoType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 12
source <xs:element name="administrativeDwellingNo" type="eCH-0129:administrativeDwellingNoType" minOccurs="0"/>

element dwellingType/EWID
diagram index_p437.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:EWIDType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 900
source <xs:element name="EWID" type="eCH-0129:EWIDType" minOccurs="0"/>

element dwellingType/physicalDwellingNo
diagram index_p438.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:physicalDwellingNoType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 12
source <xs:element name="physicalDwellingNo" type="eCH-0129:physicalDwellingNoType" minOccurs="0"/>

element dwellingType/dateOfConstruction

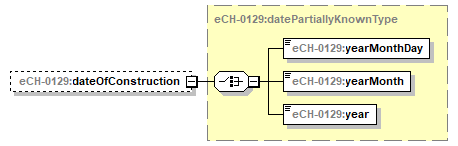

diagram index_p439.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:datePartiallyKnownType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0129:yearMonthDay eCH-0129:yearMonth eCH-0129:year
source <xs:element name="dateOfConstruction" type="eCH-0129:datePartiallyKnownType" minOccurs="0"/>

element dwellingType/dateOfDemolition

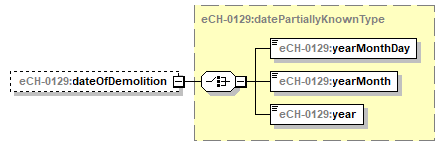

diagram index_p440.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:datePartiallyKnownType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0129:yearMonthDay eCH-0129:yearMonth eCH-0129:year
source <xs:element name="dateOfDemolition" type="eCH-0129:datePartiallyKnownType" minOccurs="0"/>

element dwellingType/noOfHabitableRooms
diagram index_p441.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:noOfHabitableRoomsType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 99
source <xs:element name="noOfHabitableRooms" type="eCH-0129:noOfHabitableRoomsType" minOccurs="0"/>

element dwellingType/floor
diagram index_p442.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:floorType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 3100
maxInclusive 3419
source <xs:element name="floor" type="eCH-0129:floorType" minOccurs="0"/>

element dwellingType/locationOfDwellingOnFloor
diagram index_p443.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:locationOfDwellingOnFloorType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 3
maxLength 40
source <xs:element name="locationOfDwellingOnFloor" type="eCH-0129:locationOfDwellingOnFloorType" minOccurs="0"/>

element dwellingType/multipleFloor
diagram index_p444.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:multipleFloorType
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="multipleFloor" type="eCH-0129:multipleFloorType" minOccurs="0"/>

element dwellingType/usageLimitation
diagram index_p445.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:usageLimitationType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 3401
enumeration 3402
enumeration 3403
enumeration 3404
source <xs:element name="usageLimitation" type="eCH-0129:usageLimitationType" minOccurs="0"/>

element dwellingType/kitchen
diagram index_p446.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:kitchenType
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="kitchen" type="eCH-0129:kitchenType" minOccurs="0"/>

element dwellingType/surfaceAreaOfDwelling
diagram index_p447.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:surfaceAreaOfDwellingType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 9999
source <xs:element name="surfaceAreaOfDwelling" type="eCH-0129:surfaceAreaOfDwellingType" minOccurs="0"/>

element dwellingType/status
diagram index_p448.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:dwellingStatusType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 3001
enumeration 3002
enumeration 3003
enumeration 3004
enumeration 3005
enumeration 3007
enumeration 3008
enumeration 3009
source <xs:element name="status" type="eCH-0129:dwellingStatusType" minOccurs="0"/>

element dwellingType/dwellingUsage
diagram index_p449.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:dwellingUsageType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0129:usageCode eCH-0129:informationSource eCH-0129:revisionDate eCH-0129:remark eCH-0129:personWithMainResidence eCH-0129:personWithSecondaryResidence eCH-0129:dateFirstOccupancy eCH-0129:dateLastOccupancy
source <xs:element name="dwellingUsage" type="eCH-0129:dwellingUsageType" minOccurs="0"/>

element dwellingType/dwellingFreeText
diagram index_p450.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:freeTextType
properties
minOcc 0
maxOcc 2
content simple
facets
Kind Value Annotation
minLength 1
maxLength 32
source <xs:element name="dwellingFreeText" type="eCH-0129:freeTextType" minOccurs="0" maxOccurs="2"/>
