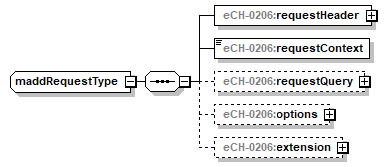

complexType maddRequestType
diagram index_p134.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
children eCH-0206:requestHeader eCH-0206:requestContext eCH-0206:requestQuery eCH-0206:options eCH-0206:extension
used by
elements maddResponseType/originalRequest maddRequest
source <xs:complexType name="maddRequestType">
  <xs:sequence>
    <xs:element name="requestHeader" type="eCH-0206:requestHeaderType"/>
    <xs:element name="requestContext">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:enumeration value="building"/>
          <xs:enumeration value="constructionProject"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="requestQuery" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="EGID" type="eCH-0129:EGIDType" minOccurs="0"/>
          <xs:element name="EPROID" type="eCH-0129:EPROIDType" minOccurs="0"/>
          <xs:element name="condition" minOccurs="0" maxOccurs="99">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="attributePath" type="eCH-0206:pathType"/>
                <xs:element name="operator">
                  <xs:simpleType>
                    <xs:restriction base="xs:token">
                      <xs:enumeration value="equalTo"/>
                      <xs:enumeration value="greaterThan"/>
                      <xs:enumeration value="lessThan"/>
                      <xs:enumeration value="greaterThanOrEqualTo"/>
                      <xs:enumeration value="lessThanOrEqualTo"/>
                      <xs:enumeration value="notEqualTo"/>
                      <xs:enumeration value="in"/>
                      <xs:enumeration value="notIn"/>
                      <xs:enumeration value="isNull"/>
                      <xs:enumeration value="isNotNull"/>
                    </xs:restriction>
                  </xs:simpleType>
                </xs:element>
                <xs:element name="attributeValue" minOccurs="0" maxOccurs="65534">
                  <xs:simpleType>
                    <xs:restriction base="xs:token">
                      <xs:maxLength value="1000"/>
                      <xs:minLength value="1"/>
                    </xs:restriction>
                  </xs:simpleType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="options" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="parameterList" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="parameterItem" type="eCH-0206:keyValuePairType" maxOccurs="100"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="flags" minOccurs="0">
            <xs:simpleType>
              <xs:restriction base="xs:NMTOKENS">
                <xs:maxLength value="2000"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

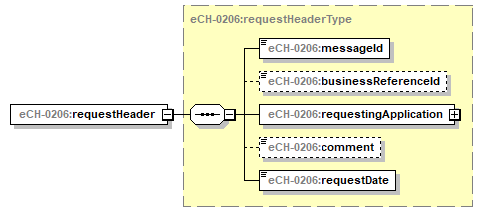

element maddRequestType/requestHeader
diagram index_p135.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:requestHeaderType
properties
content complex
children eCH-0206:messageId eCH-0206:businessReferenceId eCH-0206:requestingApplication eCH-0206:comment eCH-0206:requestDate
source <xs:element name="requestHeader" type="eCH-0206:requestHeaderType"/>

element maddRequestType/requestContext
diagram index_p136.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type restriction of xs:token
properties
content simple
facets
Kind Value Annotation
enumeration building
enumeration constructionProject
source <xs:element name="requestContext">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="building"/>
      <xs:enumeration value="constructionProject"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

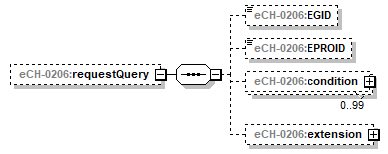

element maddRequestType/requestQuery
diagram index_p137.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:EGID eCH-0206:EPROID eCH-0206:condition eCH-0206:extension
source <xs:element name="requestQuery" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="EGID" type="eCH-0129:EGIDType" minOccurs="0"/>
      <xs:element name="EPROID" type="eCH-0129:EPROIDType" minOccurs="0"/>
      <xs:element name="condition" minOccurs="0" maxOccurs="99">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="attributePath" type="eCH-0206:pathType"/>
            <xs:element name="operator">
              <xs:simpleType>
                <xs:restriction base="xs:token">
                  <xs:enumeration value="equalTo"/>
                  <xs:enumeration value="greaterThan"/>
                  <xs:enumeration value="lessThan"/>
                  <xs:enumeration value="greaterThanOrEqualTo"/>
                  <xs:enumeration value="lessThanOrEqualTo"/>
                  <xs:enumeration value="notEqualTo"/>
                  <xs:enumeration value="in"/>
                  <xs:enumeration value="notIn"/>
                  <xs:enumeration value="isNull"/>
                  <xs:enumeration value="isNotNull"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="attributeValue" minOccurs="0" maxOccurs="65534">
              <xs:simpleType>
                <xs:restriction base="xs:token">
                  <xs:maxLength value="1000"/>
                  <xs:minLength value="1"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddRequestType/requestQuery/EGID
diagram index_p138.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:EGIDType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 900000000
source <xs:element name="EGID" type="eCH-0129:EGIDType" minOccurs="0"/>

element maddRequestType/requestQuery/EPROID
diagram index_p139.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:EPROIDType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 900000000
source <xs:element name="EPROID" type="eCH-0129:EPROIDType" minOccurs="0"/>

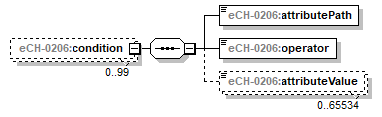

element maddRequestType/requestQuery/condition
diagram index_p140.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 0
maxOcc 99
content complex
children eCH-0206:attributePath eCH-0206:operator eCH-0206:attributeValue
source <xs:element name="condition" minOccurs="0" maxOccurs="99">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="attributePath" type="eCH-0206:pathType"/>
      <xs:element name="operator">
        <xs:simpleType>
          <xs:restriction base="xs:token">
            <xs:enumeration value="equalTo"/>
            <xs:enumeration value="greaterThan"/>
            <xs:enumeration value="lessThan"/>
            <xs:enumeration value="greaterThanOrEqualTo"/>
            <xs:enumeration value="lessThanOrEqualTo"/>
            <xs:enumeration value="notEqualTo"/>
            <xs:enumeration value="in"/>
            <xs:enumeration value="notIn"/>
            <xs:enumeration value="isNull"/>
            <xs:enumeration value="isNotNull"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="attributeValue" minOccurs="0" maxOccurs="65534">
        <xs:simpleType>
          <xs:restriction base="xs:token">
            <xs:maxLength value="1000"/>
            <xs:minLength value="1"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddRequestType/requestQuery/condition/attributePath
diagram index_p141.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:pathType
properties
content simple
facets
Kind Value Annotation
pattern (/([A-Za-z0-9_-]{1,50}:[a-zA-Z0-9]{3,100})){1,50}
source <xs:element name="attributePath" type="eCH-0206:pathType"/>

element maddRequestType/requestQuery/condition/operator
diagram index_p142.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type restriction of xs:token
properties
content simple
facets
Kind Value Annotation
enumeration equalTo
enumeration greaterThan
enumeration lessThan
enumeration greaterThanOrEqualTo
enumeration lessThanOrEqualTo
enumeration notEqualTo
enumeration in
enumeration notIn
enumeration isNull
enumeration isNotNull
source <xs:element name="operator">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:enumeration value="equalTo"/>
      <xs:enumeration value="greaterThan"/>
      <xs:enumeration value="lessThan"/>
      <xs:enumeration value="greaterThanOrEqualTo"/>
      <xs:enumeration value="lessThanOrEqualTo"/>
      <xs:enumeration value="notEqualTo"/>
      <xs:enumeration value="in"/>
      <xs:enumeration value="notIn"/>
      <xs:enumeration value="isNull"/>
      <xs:enumeration value="isNotNull"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element maddRequestType/requestQuery/condition/attributeValue
diagram index_p143.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type restriction of xs:token
properties
minOcc 0
maxOcc 65534
content simple
facets
Kind Value Annotation
minLength 1
maxLength 1000
source <xs:element name="attributeValue" minOccurs="0" maxOccurs="65534">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:maxLength value="1000"/>
      <xs:minLength value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element maddRequestType/requestQuery/extension
diagram index_p144.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:extensionType
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>

element maddRequestType/options
diagram index_p145.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:parameterList eCH-0206:flags
source <xs:element name="options" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="parameterList" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="parameterItem" type="eCH-0206:keyValuePairType" maxOccurs="100"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="flags" minOccurs="0">
        <xs:simpleType>
          <xs:restriction base="xs:NMTOKENS">
            <xs:maxLength value="2000"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element maddRequestType/options/parameterList
diagram index_p146.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:parameterItem
source <xs:element name="parameterList" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="parameterItem" type="eCH-0206:keyValuePairType" maxOccurs="100"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

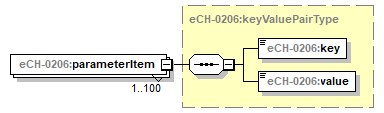

element maddRequestType/options/parameterList/parameterItem
diagram index_p147.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:keyValuePairType
properties
minOcc 1
maxOcc 100
content complex
children eCH-0206:key eCH-0206:value
source <xs:element name="parameterItem" type="eCH-0206:keyValuePairType" maxOccurs="100"/>

element maddRequestType/options/flags
diagram index_p148.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type restriction of xs:NMTOKENS
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
maxLength 2000
source <xs:element name="flags" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:NMTOKENS">
      <xs:maxLength value="2000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element maddRequestType/extension
diagram index_p149.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:extensionType
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
