complexType constructionWorkListType
diagram index_p73.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
children eCH-0206:constructionWorkItem
used by
elements maddResponseType/buildingList/buildingItem/constructionWorkList maddResponseType/constructionProjectList/constructionProjectItem/constructionWorkList
source <xs:complexType name="constructionWorkListType">
  <xs:sequence>
    <xs:element name="constructionWorkItem" maxOccurs="99999999">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="EPROID" type="eCH-0129:EPROIDType"/>
          <xs:element name="ARBID" type="eCH-0206:ARBIDType"/>
          <xs:element name="EGID" type="eCH-0129:EGIDType" minOccurs="0"/>
          <xs:element name="kindOfConstructionWork" type="eCH-0206:kindOfConstructionWorkType" minOccurs="0"/>
          <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

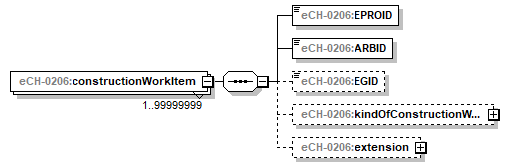

element constructionWorkListType/constructionWorkItem
diagram index_p74.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
properties
minOcc 1
maxOcc 99999999
content complex
children eCH-0206:EPROID eCH-0206:ARBID eCH-0206:EGID eCH-0206:kindOfConstructionWork eCH-0206:extension
source <xs:element name="constructionWorkItem" maxOccurs="99999999">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="EPROID" type="eCH-0129:EPROIDType"/>
      <xs:element name="ARBID" type="eCH-0206:ARBIDType"/>
      <xs:element name="EGID" type="eCH-0129:EGIDType" minOccurs="0"/>
      <xs:element name="kindOfConstructionWork" type="eCH-0206:kindOfConstructionWorkType" minOccurs="0"/>
      <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element constructionWorkListType/constructionWorkItem/EPROID
diagram index_p75.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:EPROIDType
properties
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 900000000
source <xs:element name="EPROID" type="eCH-0129:EPROIDType"/>

element constructionWorkListType/constructionWorkItem/ARBID
diagram index_p76.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:ARBIDType
properties
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 999999999999
source <xs:element name="ARBID" type="eCH-0206:ARBIDType"/>

element constructionWorkListType/constructionWorkItem/EGID
diagram index_p77.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:EGIDType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 900000000
source <xs:element name="EGID" type="eCH-0129:EGIDType" minOccurs="0"/>

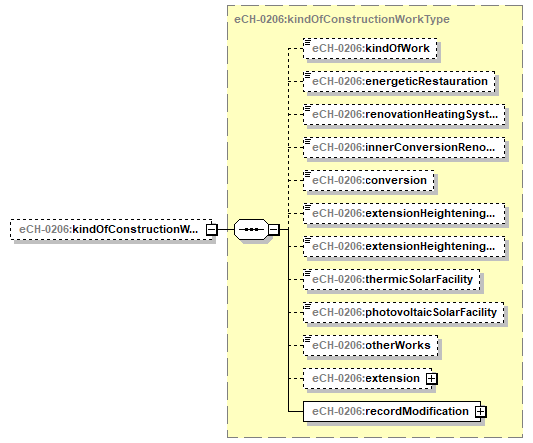

element constructionWorkListType/constructionWorkItem/kindOfConstructionWork
diagram index_p78.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:kindOfConstructionWorkType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:kindOfWork eCH-0206:energeticRestauration eCH-0206:renovationHeatingSystem eCH-0206:innerConversionRenovation eCH-0206:conversion eCH-0206:extensionHeighteningHeated eCH-0206:extensionHeighteningNotHeated eCH-0206:thermicSolarFacility eCH-0206:photovoltaicSolarFacility eCH-0206:otherWorks eCH-0206:extension eCH-0206:recordModification
source <xs:element name="kindOfConstructionWork" type="eCH-0206:kindOfConstructionWorkType" minOccurs="0"/>

element constructionWorkListType/constructionWorkItem/extension
diagram index_p79.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:extensionType
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
