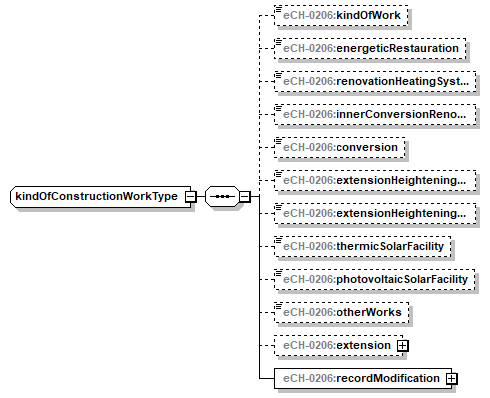

complexType kindOfConstructionWorkType
diagram index_p117.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
children eCH-0206:kindOfWork eCH-0206:energeticRestauration eCH-0206:renovationHeatingSystem eCH-0206:innerConversionRenovation eCH-0206:conversion eCH-0206:extensionHeighteningHeated eCH-0206:extensionHeighteningNotHeated eCH-0206:thermicSolarFacility eCH-0206:photovoltaicSolarFacility eCH-0206:otherWorks eCH-0206:extension eCH-0206:recordModification
used by
element constructionWorkListType/constructionWorkItem/kindOfConstructionWork
source <xs:complexType name="kindOfConstructionWorkType">
  <xs:sequence>
    <xs:element name="kindOfWork" type="eCH-0129:kindOfWorkType" minOccurs="0"/>
    <xs:element name="energeticRestauration" type="xs:boolean" minOccurs="0"/>
    <xs:element name="renovationHeatingSystem" type="xs:boolean" minOccurs="0"/>
    <xs:element name="innerConversionRenovation" type="xs:boolean" minOccurs="0"/>
    <xs:element name="conversion" type="xs:boolean" minOccurs="0"/>
    <xs:element name="extensionHeighteningHeated" type="xs:boolean" minOccurs="0"/>
    <xs:element name="extensionHeighteningNotHeated" type="xs:boolean" minOccurs="0"/>
    <xs:element name="thermicSolarFacility" type="xs:boolean" minOccurs="0"/>
    <xs:element name="photovoltaicSolarFacility" type="xs:boolean" minOccurs="0"/>
    <xs:element name="otherWorks" type="xs:boolean" minOccurs="0"/>
    <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
    <xs:element name="recordModification" type="eCH-0206:recordModificationType"/>
  </xs:sequence>
</xs:complexType>

element kindOfConstructionWorkType/kindOfWork
diagram index_p118.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:kindOfWorkType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 6001
enumeration 6002
enumeration 6007
source <xs:element name="kindOfWork" type="eCH-0129:kindOfWorkType" minOccurs="0"/>

element kindOfConstructionWorkType/energeticRestauration
diagram index_p119.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="energeticRestauration" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/renovationHeatingSystem
diagram index_p120.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="renovationHeatingSystem" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/innerConversionRenovation
diagram index_p121.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="innerConversionRenovation" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/conversion
diagram index_p122.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="conversion" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/extensionHeighteningHeated
diagram index_p123.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="extensionHeighteningHeated" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/extensionHeighteningNotHeated
diagram index_p124.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="extensionHeighteningNotHeated" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/thermicSolarFacility
diagram index_p125.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="thermicSolarFacility" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/photovoltaicSolarFacility
diagram index_p126.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="photovoltaicSolarFacility" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/otherWorks
diagram index_p127.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="otherWorks" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/extension
diagram index_p128.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:extensionType
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>

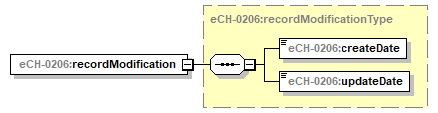

element kindOfConstructionWorkType/recordModification
diagram index_p129.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:recordModificationType
properties
content complex
children eCH-0206:createDate eCH-0206:updateDate
source <xs:element name="recordModification" type="eCH-0206:recordModificationType"/>
