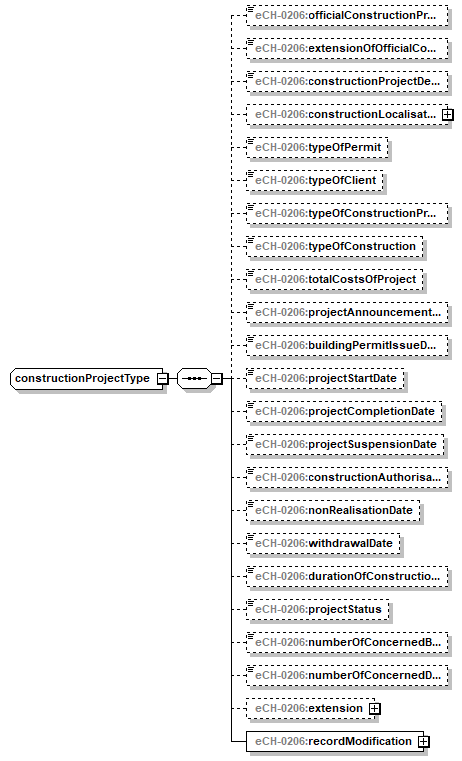

complexType constructionProjectType
diagram index_p49.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
children eCH-0206:officialConstructionProjectFileNo eCH-0206:extensionOfOfficialConstructionProjectFileNo eCH-0206:constructionProjectDescription eCH-0206:constructionLocalisation eCH-0206:typeOfPermit eCH-0206:typeOfClient eCH-0206:typeOfConstructionProject eCH-0206:typeOfConstruction eCH-0206:totalCostsOfProject eCH-0206:projectAnnouncementDate eCH-0206:buildingPermitIssueDate eCH-0206:projectStartDate eCH-0206:projectCompletionDate eCH-0206:projectSuspensionDate eCH-0206:constructionAuthorisationDeniedDate eCH-0206:nonRealisationDate eCH-0206:withdrawalDate eCH-0206:durationOfConstructionPhase eCH-0206:projectStatus eCH-0206:numberOfConcernedBuildings eCH-0206:numberOfConcernedDwellings eCH-0206:extension eCH-0206:recordModification
used by
element maddResponseType/constructionProjectList/constructionProjectItem/constructionProject
source <xs:complexType name="constructionProjectType">
  <xs:sequence>
    <xs:element name="officialConstructionProjectFileNo" type="eCH-0129:officialConstructionProjectFileNoType" minOccurs="0"/>
    <xs:element name="extensionOfOfficialConstructionProjectFileNo" type="eCH-0129:extensionOfOfficialConstructionProjectFileNoType" minOccurs="0"/>
    <xs:element name="constructionProjectDescription" type="eCH-0129:constructionProjectDescriptionType" minOccurs="0"/>
    <xs:element name="constructionLocalisation" type="eCH-0206:constructionLocalisationType" minOccurs="0"/>
    <xs:element name="typeOfPermit" type="eCH-0129:typeOfPermitType" minOccurs="0"/>
    <xs:element name="typeOfClient" type="eCH-0129:typeOfClientType" minOccurs="0"/>
    <xs:element name="typeOfConstructionProject" type="eCH-0206:typeOfConstructionProjectType" minOccurs="0"/>
    <xs:element name="typeOfConstruction" type="eCH-0129:typeOfConstructionType" minOccurs="0"/>
    <xs:element name="totalCostsOfProject" type="eCH-0129:totalCostsOfProjectType" minOccurs="0"/>
    <xs:element name="projectAnnouncementDate" type="eCH-0129:projectAnnouncementDateType" minOccurs="0"/>
    <xs:element name="buildingPermitIssueDate" type="eCH-0129:buildingPermitIssueDateType" minOccurs="0"/>
    <xs:element name="projectStartDate" type="eCH-0129:projectStartDateType" minOccurs="0"/>
    <xs:element name="projectCompletionDate" type="eCH-0129:projectCompletionDateType" minOccurs="0"/>
    <xs:element name="projectSuspensionDate" type="eCH-0129:projectSuspensionDateType" minOccurs="0"/>
    <xs:element name="constructionAuthorisationDeniedDate" type="eCH-0129:constructionAuthorisationDeniedDateType" minOccurs="0"/>
    <xs:element name="nonRealisationDate" type="eCH-0129:nonRealisationDateType" minOccurs="0"/>
    <xs:element name="withdrawalDate" type="eCH-0129:withdrawalDateType" minOccurs="0"/>
    <xs:element name="durationOfConstructionPhase" type="eCH-0129:durationOfConstructionPhaseType" minOccurs="0"/>
    <xs:element name="projectStatus" type="eCH-0129:projectStatusType" minOccurs="0"/>
    <xs:element name="numberOfConcernedBuildings" type="eCH-0129:numberOfConcernedBuildingsType" minOccurs="0"/>
    <xs:element name="numberOfConcernedDwellings" type="eCH-0129:numberOfConcernedDwellingsType" minOccurs="0"/>
    <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>
    <xs:element name="recordModification" type="eCH-0206:recordModificationType"/>
  </xs:sequence>
</xs:complexType>

element constructionProjectType/officialConstructionProjectFileNo
diagram index_p50.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:officialConstructionProjectFileNoType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 15
source <xs:element name="officialConstructionProjectFileNo" type="eCH-0129:officialConstructionProjectFileNoType" minOccurs="0"/>

element constructionProjectType/extensionOfOfficialConstructionProjectFileNo
diagram index_p51.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:extensionOfOfficialConstructionProjectFileNoType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 99
source <xs:element name="extensionOfOfficialConstructionProjectFileNo" type="eCH-0129:extensionOfOfficialConstructionProjectFileNoType" minOccurs="0"/>

element constructionProjectType/constructionProjectDescription
diagram index_p52.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:constructionProjectDescriptionType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 3
maxLength 1000
source <xs:element name="constructionProjectDescription" type="eCH-0129:constructionProjectDescriptionType" minOccurs="0"/>

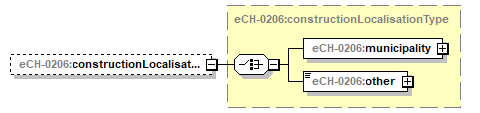

element constructionProjectType/constructionLocalisation
diagram index_p53.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:constructionLocalisationType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0206:municipality eCH-0206:other
source <xs:element name="constructionLocalisation" type="eCH-0206:constructionLocalisationType" minOccurs="0"/>

element constructionProjectType/typeOfPermit
diagram index_p54.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:typeOfPermitType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 5000
enumeration 5001
enumeration 5002
enumeration 5003
enumeration 5004
enumeration 5005
enumeration 5006
enumeration 5007
enumeration 5008
enumeration 5009
enumeration 5011
enumeration 5012
enumeration 5015
enumeration 5021
enumeration 5022
enumeration 5023
enumeration 5031
enumeration 5041
enumeration 5043
enumeration 5044
enumeration 5051
enumeration 5061
enumeration 5062
enumeration 5063
enumeration 5064
enumeration 5071
source <xs:element name="typeOfPermit" type="eCH-0129:typeOfPermitType" minOccurs="0"/>

element constructionProjectType/typeOfClient
diagram index_p55.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:typeOfClientType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 6101
enumeration 6103
enumeration 6104
enumeration 6107
enumeration 6108
enumeration 6110
enumeration 6111
enumeration 6115
enumeration 6116
enumeration 6121
enumeration 6122
enumeration 6123
enumeration 6124
enumeration 6131
enumeration 6132
enumeration 6133
enumeration 6141
enumeration 6142
enumeration 6143
enumeration 6161
enumeration 6151
enumeration 6152
enumeration 6162
enumeration 6163
source <xs:element name="typeOfClient" type="eCH-0129:typeOfClientType" minOccurs="0"/>

element constructionProjectType/typeOfConstructionProject
diagram index_p56.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:typeOfConstructionProjectType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 6010
enumeration 6011
enumeration 6012
source <xs:element name="typeOfConstructionProject" type="eCH-0206:typeOfConstructionProjectType" minOccurs="0"/>

element constructionProjectType/typeOfConstruction
diagram index_p57.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:typeOfConstructionType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 6211
enumeration 6212
enumeration 6213
enumeration 6214
enumeration 6219
enumeration 6221
enumeration 6222
enumeration 6223
enumeration 6231
enumeration 6232
enumeration 6233
enumeration 6234
enumeration 6235
enumeration 6241
enumeration 6242
enumeration 6243
enumeration 6244
enumeration 6245
enumeration 6249
enumeration 6251
enumeration 6252
enumeration 6253
enumeration 6254
enumeration 6255
enumeration 6256
enumeration 6257
enumeration 6258
enumeration 6259
enumeration 6261
enumeration 6262
enumeration 6269
enumeration 6271
enumeration 6272
enumeration 6273
enumeration 6274
enumeration 6276
enumeration 6278
enumeration 6279
enumeration 6281
enumeration 6282
enumeration 6283
enumeration 6291
enumeration 6292
enumeration 6293
enumeration 6294
enumeration 6295
enumeration 6296
enumeration 6299
source <xs:element name="typeOfConstruction" type="eCH-0129:typeOfConstructionType" minOccurs="0"/>

element constructionProjectType/totalCostsOfProject
diagram index_p58.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:totalCostsOfProjectType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1000
maxInclusive 999999999000
source <xs:element name="totalCostsOfProject" type="eCH-0129:totalCostsOfProjectType" minOccurs="0"/>

element constructionProjectType/projectAnnouncementDate
diagram index_p59.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:projectAnnouncementDateType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 2000-01-01
source <xs:element name="projectAnnouncementDate" type="eCH-0129:projectAnnouncementDateType" minOccurs="0"/>

element constructionProjectType/buildingPermitIssueDate
diagram index_p60.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:buildingPermitIssueDateType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 2000-01-01
source <xs:element name="buildingPermitIssueDate" type="eCH-0129:buildingPermitIssueDateType" minOccurs="0"/>

element constructionProjectType/projectStartDate
diagram index_p61.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:projectStartDateType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 2000-01-01
source <xs:element name="projectStartDate" type="eCH-0129:projectStartDateType" minOccurs="0"/>

element constructionProjectType/projectCompletionDate
diagram index_p62.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:projectCompletionDateType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 2000-01-01
source <xs:element name="projectCompletionDate" type="eCH-0129:projectCompletionDateType" minOccurs="0"/>

element constructionProjectType/projectSuspensionDate
diagram index_p63.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:projectSuspensionDateType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 2000-01-01
source <xs:element name="projectSuspensionDate" type="eCH-0129:projectSuspensionDateType" minOccurs="0"/>

element constructionProjectType/constructionAuthorisationDeniedDate
diagram index_p64.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:constructionAuthorisationDeniedDateType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 2000-01-01
source <xs:element name="constructionAuthorisationDeniedDate" type="eCH-0129:constructionAuthorisationDeniedDateType" minOccurs="0"/>

element constructionProjectType/nonRealisationDate
diagram index_p65.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:nonRealisationDateType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 2000-01-01
source <xs:element name="nonRealisationDate" type="eCH-0129:nonRealisationDateType" minOccurs="0"/>

element constructionProjectType/withdrawalDate
diagram index_p66.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:withdrawalDateType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 2000-01-01
source <xs:element name="withdrawalDate" type="eCH-0129:withdrawalDateType" minOccurs="0"/>

element constructionProjectType/durationOfConstructionPhase
diagram index_p67.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:durationOfConstructionPhaseType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 999
source <xs:element name="durationOfConstructionPhase" type="eCH-0129:durationOfConstructionPhaseType" minOccurs="0"/>

element constructionProjectType/projectStatus
diagram index_p68.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:projectStatusType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 6701
enumeration 6702
enumeration 6703
enumeration 6704
enumeration 6706
enumeration 6707
enumeration 6708
enumeration 6709
source <xs:element name="projectStatus" type="eCH-0129:projectStatusType" minOccurs="0"/>

element constructionProjectType/numberOfConcernedBuildings
diagram index_p69.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:numberOfConcernedBuildingsType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 999
source <xs:element name="numberOfConcernedBuildings" type="eCH-0129:numberOfConcernedBuildingsType" minOccurs="0"/>

element constructionProjectType/numberOfConcernedDwellings
diagram index_p70.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:numberOfConcernedDwellingsType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 999
source <xs:element name="numberOfConcernedDwellings" type="eCH-0129:numberOfConcernedDwellingsType" minOccurs="0"/>

element constructionProjectType/extension
diagram index_p71.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:extensionType
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="extension" type="eCH-0206:extensionType" minOccurs="0"/>

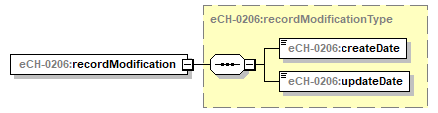

element constructionProjectType/recordModification
diagram index_p72.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:recordModificationType
properties
content complex
children eCH-0206:createDate eCH-0206:updateDate
source <xs:element name="recordModification" type="eCH-0206:recordModificationType"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
