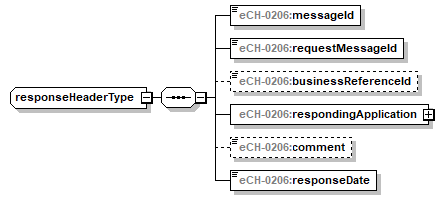

complexType responseHeaderType
diagram index_p213.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
children eCH-0206:messageId eCH-0206:requestMessageId eCH-0206:businessReferenceId eCH-0206:respondingApplication eCH-0206:comment eCH-0206:responseDate
used by
element maddResponseType/responseHeader
source <xs:complexType name="responseHeaderType">
  <xs:sequence>
    <xs:element name="messageId" type="eCH-0058:messageIdType"/>
    <xs:element name="requestMessageId" type="eCH-0058:messageIdType"/>
    <xs:element name="businessReferenceId" type="eCH-0058:businessReferenceIdType" minOccurs="0"/>
    <xs:element name="respondingApplication" type="eCH-0058:sendingApplicationType"/>
    <xs:element name="comment" type="eCH-0058:commentType" minOccurs="0"/>
    <xs:element name="responseDate" type="eCH-0058:messageDateType"/>
  </xs:sequence>
</xs:complexType>

element responseHeaderType/messageId
diagram index_p214.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0058:messageIdType
properties
content simple
facets
Kind Value Annotation
minLength 1
maxLength 36
source <xs:element name="messageId" type="eCH-0058:messageIdType"/>

element responseHeaderType/requestMessageId
diagram index_p215.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0058:messageIdType
properties
content simple
facets
Kind Value Annotation
minLength 1
maxLength 36
source <xs:element name="requestMessageId" type="eCH-0058:messageIdType"/>

element responseHeaderType/businessReferenceId
diagram index_p216.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0058:businessReferenceIdType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 50
source <xs:element name="businessReferenceId" type="eCH-0058:businessReferenceIdType" minOccurs="0"/>

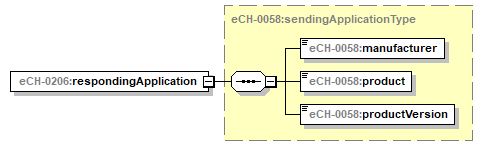

element responseHeaderType/respondingApplication
diagram index_p217.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0058:sendingApplicationType
properties
content complex
children eCH-0058:manufacturer eCH-0058:product eCH-0058:productVersion
source <xs:element name="respondingApplication" type="eCH-0058:sendingApplicationType"/>

element responseHeaderType/comment
diagram index_p218.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0058:commentType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 250
source <xs:element name="comment" type="eCH-0058:commentType" minOccurs="0"/>

element responseHeaderType/responseDate
diagram index_p219.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0058:messageDateType
properties
content simple
source <xs:element name="responseDate" type="eCH-0058:messageDateType"/>
