complexType sendingApplicationType

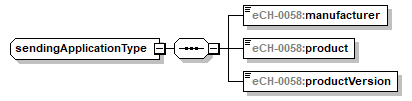

diagram index_p657.png
namespace http://www.ech.ch/xmlns/eCH-0058/5
children eCH-0058:manufacturer eCH-0058:product eCH-0058:productVersion
used by
elements headerType/sendingApplication requestHeaderType/requestingApplication responseHeaderType/respondingApplication
source <xs:complexType name="sendingApplicationType">
  <xs:sequence>
    <xs:element name="manufacturer">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:maxLength value="30"/>
          <xs:minLength value="1"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="product">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:maxLength value="30"/>
          <xs:minLength value="1"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="productVersion">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:maxLength value="10"/>
          <xs:minLength value="1"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element sendingApplicationType/manufacturer
diagram index_p658.png
namespace http://www.ech.ch/xmlns/eCH-0058/5
type restriction of xs:token
properties
content simple
facets
Kind Value Annotation
minLength 1
maxLength 30
source <xs:element name="manufacturer">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:maxLength value="30"/>
      <xs:minLength value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element sendingApplicationType/product
diagram index_p659.png
namespace http://www.ech.ch/xmlns/eCH-0058/5
type restriction of xs:token
properties
content simple
facets
Kind Value Annotation
minLength 1
maxLength 30
source <xs:element name="product">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:maxLength value="30"/>
      <xs:minLength value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element sendingApplicationType/productVersion
diagram index_p660.png
namespace http://www.ech.ch/xmlns/eCH-0058/5
type restriction of xs:token
properties
content simple
facets
Kind Value Annotation
minLength 1
maxLength 10
source <xs:element name="productVersion">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:maxLength value="10"/>
      <xs:minLength value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
