complexType coordinatesType
diagram index_p413.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:LV95 eCH-0129:LV03
used by
elements buildingType/coordinates buildingOnlyType/coordinates buildingEntranceType/coordinates buildingEntranceOnlyType/coordinates realestateType/coordinates
source <xs:complexType name="coordinatesType">
  <xs:choice>
    <xs:element name="LV95">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="east">
            <xs:simpleType>
              <xs:restriction base="xs:decimal">
                <xs:minInclusive value="2480000.000"/>
                <xs:totalDigits value="10"/>
                <xs:fractionDigits value="3"/>
                <xs:maxInclusive value="2840000.999"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:element>
          <xs:element name="north">
            <xs:simpleType>
              <xs:restriction base="xs:decimal">
                <xs:totalDigits value="10"/>
                <xs:fractionDigits value="3"/>
                <xs:minInclusive value="1070000.000"/>
                <xs:maxInclusive value="1300000.999"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:element>
          <xs:element name="originOfCoordinates" type="eCH-0129:originOfCoordinatesType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="LV03">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="Y">
            <xs:simpleType>
              <xs:restriction base="xs:decimal">
                <xs:minInclusive value="480000.000"/>
                <xs:totalDigits value="9"/>
                <xs:fractionDigits value="3"/>
                <xs:maxInclusive value="840000.999"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:element>
          <xs:element name="X">
            <xs:simpleType>
              <xs:restriction base="xs:decimal">
                <xs:totalDigits value="9"/>
                <xs:fractionDigits value="3"/>
                <xs:minInclusive value="070000.000"/>
                <xs:maxInclusive value="300000.999"/>
              </xs:restriction>
            </xs:simpleType>
          </xs:element>
          <xs:element name="originOfCoordinates" type="eCH-0129:originOfCoordinatesType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>

element coordinatesType/LV95

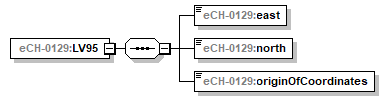

diagram index_p414.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
properties
content complex
children eCH-0129:east eCH-0129:north eCH-0129:originOfCoordinates
source <xs:element name="LV95">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="east">
        <xs:simpleType>
          <xs:restriction base="xs:decimal">
            <xs:minInclusive value="2480000.000"/>
            <xs:totalDigits value="10"/>
            <xs:fractionDigits value="3"/>
            <xs:maxInclusive value="2840000.999"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="north">
        <xs:simpleType>
          <xs:restriction base="xs:decimal">
            <xs:totalDigits value="10"/>
            <xs:fractionDigits value="3"/>
            <xs:minInclusive value="1070000.000"/>
            <xs:maxInclusive value="1300000.999"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="originOfCoordinates" type="eCH-0129:originOfCoordinatesType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element coordinatesType/LV95/east
diagram index_p415.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type restriction of xs:decimal
properties
content simple
facets
Kind Value Annotation
minInclusive 2480000.000
maxInclusive 2840000.999
totalDigits 10
fractionDigits 3
source <xs:element name="east">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="2480000.000"/>
      <xs:totalDigits value="10"/>
      <xs:fractionDigits value="3"/>
      <xs:maxInclusive value="2840000.999"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element coordinatesType/LV95/north
diagram index_p416.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type restriction of xs:decimal
properties
content simple
facets
Kind Value Annotation
minInclusive 1070000.000
maxInclusive 1300000.999
totalDigits 10
fractionDigits 3
source <xs:element name="north">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:totalDigits value="10"/>
      <xs:fractionDigits value="3"/>
      <xs:minInclusive value="1070000.000"/>
      <xs:maxInclusive value="1300000.999"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element coordinatesType/LV95/originOfCoordinates
diagram index_p417.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:originOfCoordinatesType
properties
content simple
facets
Kind Value Annotation
enumeration 901
enumeration 902
enumeration 903
enumeration 904
enumeration 905
enumeration 906
enumeration 909
source <xs:element name="originOfCoordinates" type="eCH-0129:originOfCoordinatesType"/>

element coordinatesType/LV03
diagram index_p418.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
properties
content complex
children eCH-0129:Y eCH-0129:X eCH-0129:originOfCoordinates
source <xs:element name="LV03">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Y">
        <xs:simpleType>
          <xs:restriction base="xs:decimal">
            <xs:minInclusive value="480000.000"/>
            <xs:totalDigits value="9"/>
            <xs:fractionDigits value="3"/>
            <xs:maxInclusive value="840000.999"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="X">
        <xs:simpleType>
          <xs:restriction base="xs:decimal">
            <xs:totalDigits value="9"/>
            <xs:fractionDigits value="3"/>
            <xs:minInclusive value="070000.000"/>
            <xs:maxInclusive value="300000.999"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="originOfCoordinates" type="eCH-0129:originOfCoordinatesType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element coordinatesType/LV03/Y
diagram index_p419.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type restriction of xs:decimal
properties
content simple
facets
Kind Value Annotation
minInclusive 480000.000
maxInclusive 840000.999
totalDigits 9
fractionDigits 3
source <xs:element name="Y">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:minInclusive value="480000.000"/>
      <xs:totalDigits value="9"/>
      <xs:fractionDigits value="3"/>
      <xs:maxInclusive value="840000.999"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element coordinatesType/LV03/X
diagram index_p420.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type restriction of xs:decimal
properties
content simple
facets
Kind Value Annotation
minInclusive 070000.000
maxInclusive 300000.999
totalDigits 9
fractionDigits 3
source <xs:element name="X">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:totalDigits value="9"/>
      <xs:fractionDigits value="3"/>
      <xs:minInclusive value="070000.000"/>
      <xs:maxInclusive value="300000.999"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element coordinatesType/LV03/originOfCoordinates
diagram index_p421.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:originOfCoordinatesType
properties
content simple
facets
Kind Value Annotation
enumeration 901
enumeration 902
enumeration 903
enumeration 904
enumeration 905
enumeration 906
enumeration 909
source <xs:element name="originOfCoordinates" type="eCH-0129:originOfCoordinatesType"/>
