complexType buildingEntranceOnlyType

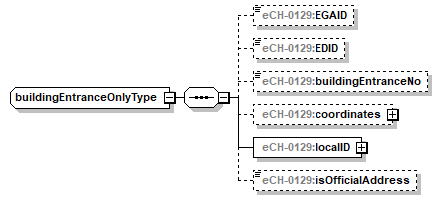

diagram index_p282.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:EGAID eCH-0129:EDID eCH-0129:buildingEntranceNo eCH-0129:coordinates eCH-0129:localID eCH-0129:isOfficialAddress
used by
element buildingEntranceOnly
source <xs:complexType name="buildingEntranceOnlyType">
  <xs:sequence>
    <xs:element name="EGAID" type="eCH-0129:EGAIDType" minOccurs="0"/>
    <xs:element name="EDID" type="eCH-0129:EDIDType" minOccurs="0"/>
    <xs:element name="buildingEntranceNo" type="eCH-0129:buildingEntranceNoType" minOccurs="0"/>
    <xs:element name="coordinates" type="eCH-0129:coordinatesType" minOccurs="0"/>
    <xs:element name="localID" type="eCH-0129:namedIdType"/>
    <xs:element name="isOfficialAddress" type="xs:boolean" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element buildingEntranceOnlyType/EGAID
diagram index_p283.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:EGAIDType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 100000000
maxInclusive 900000000
source <xs:element name="EGAID" type="eCH-0129:EGAIDType" minOccurs="0"/>

element buildingEntranceOnlyType/EDID
diagram index_p284.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:EDIDType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 90
source <xs:element name="EDID" type="eCH-0129:EDIDType" minOccurs="0"/>

element buildingEntranceOnlyType/buildingEntranceNo
diagram index_p285.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:buildingEntranceNoType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 12
source <xs:element name="buildingEntranceNo" type="eCH-0129:buildingEntranceNoType" minOccurs="0"/>

element buildingEntranceOnlyType/coordinates

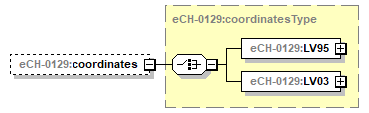

diagram index_p286.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:coordinatesType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0129:LV95 eCH-0129:LV03
source <xs:element name="coordinates" type="eCH-0129:coordinatesType" minOccurs="0"/>

element buildingEntranceOnlyType/localID

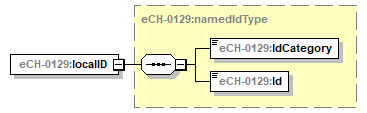

diagram index_p287.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:namedIdType
properties
content complex
children eCH-0129:IdCategory eCH-0129:Id
source <xs:element name="localID" type="eCH-0129:namedIdType"/>

element buildingEntranceOnlyType/isOfficialAddress
diagram index_p288.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="isOfficialAddress" type="xs:boolean" minOccurs="0"/>
