complexType buildingEntranceType

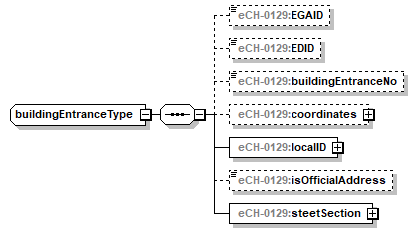

diagram index_p289.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:EGAID eCH-0129:EDID eCH-0129:buildingEntranceNo eCH-0129:coordinates eCH-0129:localID eCH-0129:isOfficialAddress eCH-0129:steetSection
used by
elements buildingEntrance buildingType/buildingEntrance
source <xs:complexType name="buildingEntranceType">
  <xs:sequence>
    <xs:element name="EGAID" type="eCH-0129:EGAIDType" minOccurs="0"/>
    <xs:element name="EDID" type="eCH-0129:EDIDType" minOccurs="0"/>
    <xs:element name="buildingEntranceNo" type="eCH-0129:buildingEntranceNoType" minOccurs="0"/>
    <xs:element name="coordinates" type="eCH-0129:coordinatesType" minOccurs="0"/>
    <xs:element name="localID" type="eCH-0129:namedIdType"/>
    <xs:element name="isOfficialAddress" type="xs:boolean" minOccurs="0"/>
    <xs:element name="steetSection" type="eCH-0129:streetSectionType"/>
  </xs:sequence>
</xs:complexType>

element buildingEntranceType/EGAID
diagram index_p290.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:EGAIDType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 100000000
maxInclusive 900000000
source <xs:element name="EGAID" type="eCH-0129:EGAIDType" minOccurs="0"/>

element buildingEntranceType/EDID
diagram index_p291.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:EDIDType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 90
source <xs:element name="EDID" type="eCH-0129:EDIDType" minOccurs="0"/>

element buildingEntranceType/buildingEntranceNo
diagram index_p292.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:buildingEntranceNoType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 12
source <xs:element name="buildingEntranceNo" type="eCH-0129:buildingEntranceNoType" minOccurs="0"/>

element buildingEntranceType/coordinates
diagram index_p293.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:coordinatesType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0129:LV95 eCH-0129:LV03
source <xs:element name="coordinates" type="eCH-0129:coordinatesType" minOccurs="0"/>

element buildingEntranceType/localID

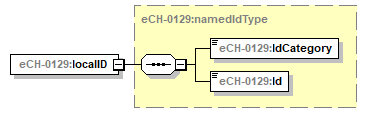

diagram index_p294.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:namedIdType
properties
content complex
children eCH-0129:IdCategory eCH-0129:Id
source <xs:element name="localID" type="eCH-0129:namedIdType"/>

element buildingEntranceType/isOfficialAddress
diagram index_p295.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="isOfficialAddress" type="xs:boolean" minOccurs="0"/>

element buildingEntranceType/steetSection

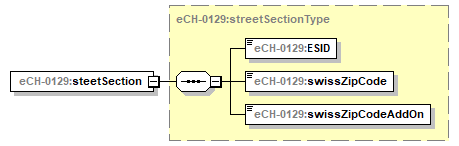

diagram index_p296.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:streetSectionType
properties
content complex
children eCH-0129:ESID eCH-0129:swissZipCode eCH-0129:swissZipCodeAddOn
source <xs:element name="steetSection" type="eCH-0129:streetSectionType"/>
