complexType realestateType

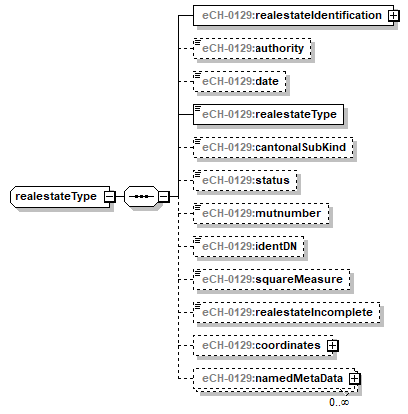

diagram index_p575.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:realestateIdentification eCH-0129:authority eCH-0129:date eCH-0129:realestateType eCH-0129:cantonalSubKind eCH-0129:status eCH-0129:mutnumber eCH-0129:identDN eCH-0129:squareMeasure eCH-0129:realestateIncomplete eCH-0129:coordinates eCH-0129:namedMetaData
used by
element realestate
source <xs:complexType name="realestateType">
  <xs:sequence>
    <xs:element name="realestateIdentification" type="eCH-0129:realestateIdentificationType"/>
    <xs:element name="authority" type="eCH-0129:authorityType" minOccurs="0"/>
    <xs:element name="date" type="eCH-0129:realestateDateType" minOccurs="0"/>
    <xs:element name="realestateType" type="eCH-0129:realestateTypeType"/>
    <xs:element name="cantonalSubKind" type="eCH-0129:cantonalSubKindType" minOccurs="0"/>
    <xs:element name="status" type="eCH-0129:realestateStatusType" minOccurs="0"/>
    <xs:element name="mutnumber" type="eCH-0129:realestateMutnumberType" minOccurs="0"/>
    <xs:element name="identDN" type="eCH-0129:identDNType" minOccurs="0"/>
    <xs:element name="squareMeasure" type="eCH-0129:squareMeasureType" minOccurs="0"/>
    <xs:element name="realestateIncomplete" type="eCH-0129:realestateIncompleteType" minOccurs="0"/>
    <xs:element name="coordinates" type="eCH-0129:coordinatesType" minOccurs="0"/>
    <xs:element name="namedMetaData" type="eCH-0129:namedMetaDataType" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element realestateType/realestateIdentification

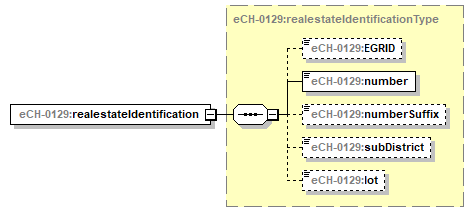

diagram index_p576.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:realestateIdentificationType
properties
content complex
children eCH-0129:EGRID eCH-0129:number eCH-0129:numberSuffix eCH-0129:subDistrict eCH-0129:lot
source <xs:element name="realestateIdentification" type="eCH-0129:realestateIdentificationType"/>

element realestateType/authority
diagram index_p577.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:authorityType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 12
source <xs:element name="authority" type="eCH-0129:authorityType" minOccurs="0"/>

element realestateType/date
diagram index_p578.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:realestateDateType
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="date" type="eCH-0129:realestateDateType" minOccurs="0"/>

element realestateType/realestateType
diagram index_p579.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:realestateTypeType
properties
content simple
facets
Kind Value Annotation
enumeration 1
enumeration 2
enumeration 3
enumeration 4
enumeration 5
enumeration 6
enumeration 7
enumeration 8
source <xs:element name="realestateType" type="eCH-0129:realestateTypeType"/>

element realestateType/cantonalSubKind
diagram index_p580.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:cantonalSubKindType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 60
source <xs:element name="cantonalSubKind" type="eCH-0129:cantonalSubKindType" minOccurs="0"/>

element realestateType/status
diagram index_p581.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:realestateStatusType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 0
enumeration 1
source <xs:element name="status" type="eCH-0129:realestateStatusType" minOccurs="0"/>

element realestateType/mutnumber
diagram index_p582.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:realestateMutnumberType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 12
source <xs:element name="mutnumber" type="eCH-0129:realestateMutnumberType" minOccurs="0"/>

element realestateType/identDN
diagram index_p583.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:identDNType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 12
source <xs:element name="identDN" type="eCH-0129:identDNType" minOccurs="0"/>

element realestateType/squareMeasure
diagram index_p584.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:squareMeasureType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 1000000000.0
source <xs:element name="squareMeasure" type="eCH-0129:squareMeasureType" minOccurs="0"/>

element realestateType/realestateIncomplete
diagram index_p585.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:realestateIncompleteType
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="realestateIncomplete" type="eCH-0129:realestateIncompleteType" minOccurs="0"/>

element realestateType/coordinates

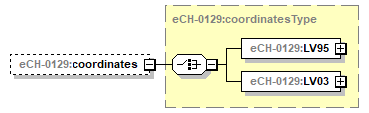

diagram index_p586.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:coordinatesType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0129:LV95 eCH-0129:LV03
source <xs:element name="coordinates" type="eCH-0129:coordinatesType" minOccurs="0"/>

element realestateType/namedMetaData

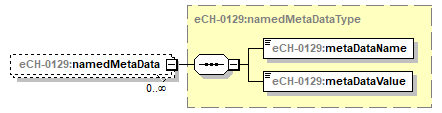

diagram index_p587.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:namedMetaDataType
properties
minOcc 0
maxOcc unbounded
content complex
children eCH-0129:metaDataName eCH-0129:metaDataValue
source <xs:element name="namedMetaData" type="eCH-0129:namedMetaDataType" minOccurs="0" maxOccurs="unbounded"/>
