complexType localityType

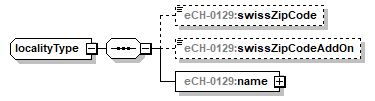

diagram index_p542.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:swissZipCode eCH-0129:swissZipCodeAddOn eCH-0129:name
used by
element locality
source <xs:complexType name="localityType">
  <xs:sequence>
    <xs:element name="swissZipCode" type="eCH-0010:swissZipCodeType" minOccurs="0"/>
    <xs:element name="swissZipCodeAddOn" type="eCH-0010:swissZipCodeAddOnType" minOccurs="0"/>
    <xs:element name="name" type="eCH-0129:localityNameType"/>
  </xs:sequence>
</xs:complexType>

element localityType/swissZipCode
diagram index_p543.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0010:swissZipCodeType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1000
maxInclusive 9999
source <xs:element name="swissZipCode" type="eCH-0010:swissZipCodeType" minOccurs="0"/>

element localityType/swissZipCodeAddOn
diagram index_p544.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0010:swissZipCodeAddOnType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
maxLength 2
source <xs:element name="swissZipCodeAddOn" type="eCH-0010:swissZipCodeAddOnType" minOccurs="0"/>

element localityType/name

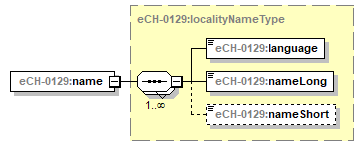

diagram index_p545.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:localityNameType
properties
content complex
children eCH-0129:language eCH-0129:nameLong eCH-0129:nameShort
source <xs:element name="name" type="eCH-0129:localityNameType"/>
