complexType localityNameType

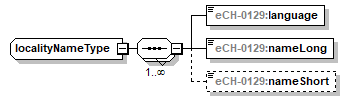

diagram index_p538.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:language eCH-0129:nameLong eCH-0129:nameShort
used by
element localityType/name
source <xs:complexType name="localityNameType">
  <xs:sequence maxOccurs="unbounded">
    <xs:element name="language" type="eCH-0129:streetLanguageType"/>
    <xs:element name="nameLong">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:minLength value="2"/>
          <xs:maxLength value="40"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="nameShort" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:token">
          <xs:minLength value="2"/>
          <xs:maxLength value="18"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element localityNameType/language
diagram index_p539.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:streetLanguageType
properties
content simple
facets
Kind Value Annotation
enumeration 9901
enumeration 9902
enumeration 9903
enumeration 9904
source <xs:element name="language" type="eCH-0129:streetLanguageType"/>

element localityNameType/nameLong
diagram index_p540.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type restriction of xs:token
properties
content simple
facets
Kind Value Annotation
minLength 2
maxLength 40
source <xs:element name="nameLong">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:minLength value="2"/>
      <xs:maxLength value="40"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element localityNameType/nameShort
diagram index_p541.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type restriction of xs:token
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 2
maxLength 18
source <xs:element name="nameShort" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:token">
      <xs:minLength value="2"/>
      <xs:maxLength value="18"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
