complexType swissMunicipalityType

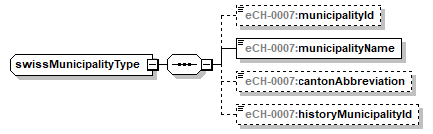

diagram
namespace	http://www.ech.ch/xmlns/eCH-0007/6
children	eCH-0007:municipalityId eCH-0007:municipalityName eCH-0007:cantonAbbreviation eCH-0007:historyMunicipalityId
used by	elements  municipalityRoot/swissMunicipality constructionLocalisationType/municipality
source	<xs:complexType name="swissMunicipalityType">   <xs:sequence>     <xs:element name="municipalityId" type="eCH-0007:municipalityIdType" minOccurs="0"/>     <xs:element name="municipalityName" type="eCH-0007:municipalityNameType"/>     <xs:element name="cantonAbbreviation" type="eCH-0007:cantonAbbreviationType" minOccurs="0"/>     <xs:element name="historyMunicipalityId" type="eCH-0007:historyMunicipalityId" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element swissMunicipalityType/municipalityId

diagram
namespace	http://www.ech.ch/xmlns/eCH-0007/6
type	eCH-0007:municipalityIdType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  1 maxInclusive  9999 totalDigits  4
source	<xs:element name="municipalityId" type="eCH-0007:municipalityIdType" minOccurs="0"/>

element swissMunicipalityType/municipalityName

diagram
namespace	http://www.ech.ch/xmlns/eCH-0007/6
type	eCH-0007:municipalityNameType
properties	content  simple
facets	Kind  Value  Annotation maxLength  40
source	<xs:element name="municipalityName" type="eCH-0007:municipalityNameType"/>

element swissMunicipalityType/cantonAbbreviation

diagram
namespace	http://www.ech.ch/xmlns/eCH-0007/6
type	eCH-0007:cantonAbbreviationType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  2 enumeration  ZH enumeration  BE enumeration  LU enumeration  UR enumeration  SZ enumeration  OW enumeration  NW enumeration  GL enumeration  ZG enumeration  FR enumeration  SO enumeration  BS enumeration  BL enumeration  SH enumeration  AR enumeration  AI enumeration  SG enumeration  GR enumeration  AG enumeration  TG enumeration  TI enumeration  VD enumeration  VS enumeration  NE enumeration  GE enumeration  JU
source	<xs:element name="cantonAbbreviation" type="eCH-0007:cantonAbbreviationType" minOccurs="0"/>

element swissMunicipalityType/historyMunicipalityId

diagram
namespace	http://www.ech.ch/xmlns/eCH-0007/6
type	eCH-0007:historyMunicipalityId
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  10001 maxInclusive  99999
source	<xs:element name="historyMunicipalityId" type="eCH-0007:historyMunicipalityId" minOccurs="0"/>
