complexType streetType

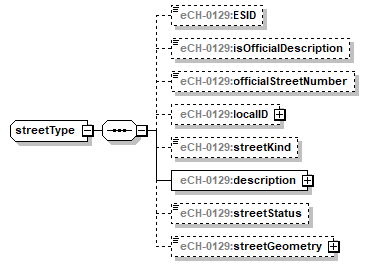

diagram index_p599.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:ESID eCH-0129:isOfficialDescription eCH-0129:officialStreetNumber eCH-0129:localID eCH-0129:streetKind eCH-0129:description eCH-0129:streetStatus eCH-0129:streetGeometry
used by
element street
source <xs:complexType name="streetType">
  <xs:sequence>
    <xs:element name="ESID" type="eCH-0129:ESIDType" minOccurs="0"/>
    <xs:element name="isOfficialDescription" type="eCH-0129:isOfficialDescriptionType" minOccurs="0"/>
    <xs:element name="officialStreetNumber" type="eCH-0129:officialStreetNumberType" minOccurs="0"/>
    <xs:element name="localID" type="eCH-0129:namedIdType" minOccurs="0"/>
    <xs:element name="streetKind" type="eCH-0129:streetKindType" minOccurs="0"/>
    <xs:element name="description" type="eCH-0129:streetDescriptionType"/>
    <xs:element name="streetStatus" type="eCH-0129:streetStatusType" minOccurs="0"/>
    <xs:element name="streetGeometry" type="xs:anyType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element streetType/ESID
diagram index_p600.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:ESIDType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 10000000
maxInclusive 90000000
source <xs:element name="ESID" type="eCH-0129:ESIDType" minOccurs="0"/>

element streetType/isOfficialDescription
diagram index_p601.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:isOfficialDescriptionType
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="isOfficialDescription" type="eCH-0129:isOfficialDescriptionType" minOccurs="0"/>

element streetType/officialStreetNumber
diagram index_p602.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:officialStreetNumberType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 999999999999
source <xs:element name="officialStreetNumber" type="eCH-0129:officialStreetNumberType" minOccurs="0"/>

element streetType/localID
diagram index_p603.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:namedIdType
properties
minOcc 0
maxOcc 1
content complex
children eCH-0129:IdCategory eCH-0129:Id
source <xs:element name="localID" type="eCH-0129:namedIdType" minOccurs="0"/>

element streetType/streetKind
diagram index_p604.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:streetKindType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 9801
enumeration 9802
enumeration 9803
enumeration 9809
source <xs:element name="streetKind" type="eCH-0129:streetKindType" minOccurs="0"/>

element streetType/description

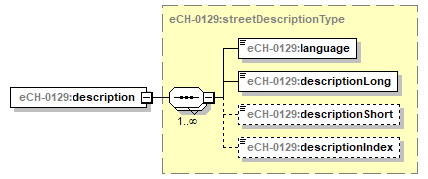

diagram index_p605.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:streetDescriptionType
properties
content complex
children eCH-0129:language eCH-0129:descriptionLong eCH-0129:descriptionShort eCH-0129:descriptionIndex
source <xs:element name="description" type="eCH-0129:streetDescriptionType"/>

element streetType/streetStatus
diagram index_p606.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:streetStatusType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 9811
enumeration 9812
enumeration 9813
enumeration 9814
source <xs:element name="streetStatus" type="eCH-0129:streetStatusType" minOccurs="0"/>

element streetType/streetGeometry

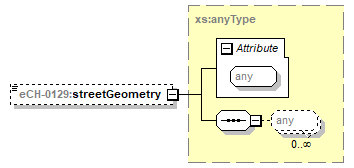

diagram index_p607.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type xs:anyType
properties
minOcc 0
maxOcc 1
content complex
mixed true
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="streetGeometry" type="xs:anyType" minOccurs="0"/>
