complexType streetNameType

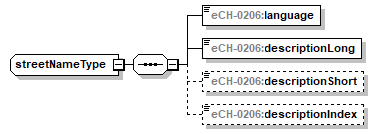

diagram index_p220.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
children eCH-0206:language eCH-0206:descriptionLong eCH-0206:descriptionShort eCH-0206:descriptionIndex
used by
element streetType/streetNameList/streetNameItem
source <xs:complexType name="streetNameType">
  <xs:sequence>
    <xs:element name="language" type="eCH-0129:streetLanguageType"/>
    <xs:element name="descriptionLong" type="eCH-0129:streetDescriptionLongType"/>
    <xs:element name="descriptionShort" type="eCH-0129:streetDescriptionShortType" minOccurs="0"/>
    <xs:element name="descriptionIndex" type="eCH-0129:streetIndexNameType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element streetNameType/language
diagram index_p221.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:streetLanguageType
properties
content simple
facets
Kind Value Annotation
enumeration 9901
enumeration 9902
enumeration 9903
enumeration 9904
source <xs:element name="language" type="eCH-0129:streetLanguageType"/>

element streetNameType/descriptionLong
diagram index_p222.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:streetDescriptionLongType
properties
content simple
facets
Kind Value Annotation
minLength 1
maxLength 60
source <xs:element name="descriptionLong" type="eCH-0129:streetDescriptionLongType"/>

element streetNameType/descriptionShort
diagram index_p223.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:streetDescriptionShortType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 24
source <xs:element name="descriptionShort" type="eCH-0129:streetDescriptionShortType" minOccurs="0"/>

element streetNameType/descriptionIndex
diagram index_p224.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:streetIndexNameType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 3
source <xs:element name="descriptionIndex" type="eCH-0129:streetIndexNameType" minOccurs="0"/>
