diagram | |
namespace | http://www.ech.ch/xmlns/eCH-0129/5 |
children | eCH-0129:identification eCH-0129:address |
source | <xs:complexType name="personType"> <xs:sequence> <xs:element name="identification"> <xs:complexType> <xs:choice> <xs:element name="personIdentification" type="eCH-0044:personIdentificationLightType"/> <xs:element name="organisationIdentification" type="eCH-0097:organisationIdentificationType"/> </xs:choice> </xs:complexType> </xs:element> <xs:element name="address" type="eCH-0010:addressInformationType" minOccurs="0"/> </xs:sequence> </xs:complexType> |
diagram | |||
namespace | http://www.ech.ch/xmlns/eCH-0129/5 | ||
properties |
|
||
children | eCH-0129:personIdentification eCH-0129:organisationIdentification | ||
source | <xs:element name="identification"> <xs:complexType> <xs:choice> <xs:element name="personIdentification" type="eCH-0044:personIdentificationLightType"/> <xs:element name="organisationIdentification" type="eCH-0097:organisationIdentificationType"/> </xs:choice> </xs:complexType> </xs:element> |

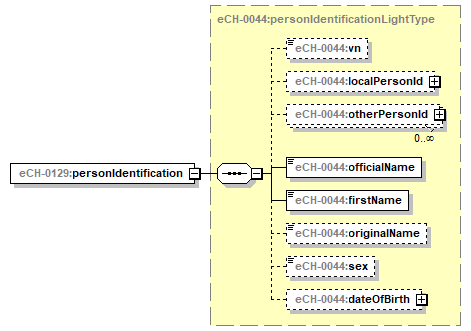

diagram | |||
namespace | http://www.ech.ch/xmlns/eCH-0129/5 | ||
type | eCH-0044:personIdentificationLightType | ||
properties |
|
||
children | eCH-0044:vn eCH-0044:localPersonId eCH-0044:otherPersonId eCH-0044:officialName eCH-0044:firstName eCH-0044:originalName eCH-0044:sex eCH-0044:dateOfBirth | ||
source | <xs:element name="personIdentification" type="eCH-0044:personIdentificationLightType"/> |

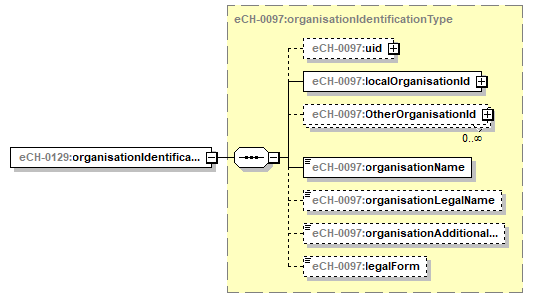

diagram | |||
namespace | http://www.ech.ch/xmlns/eCH-0129/5 | ||
type | eCH-0097:organisationIdentificationType | ||
properties |
|
||
children | eCH-0097:uid eCH-0097:localOrganisationId eCH-0097:OtherOrganisationId eCH-0097:organisationName eCH-0097:organisationLegalName eCH-0097:organisationAdditionalName eCH-0097:legalForm | ||
source | <xs:element name="organisationIdentification" type="eCH-0097:organisationIdentificationType"/> |

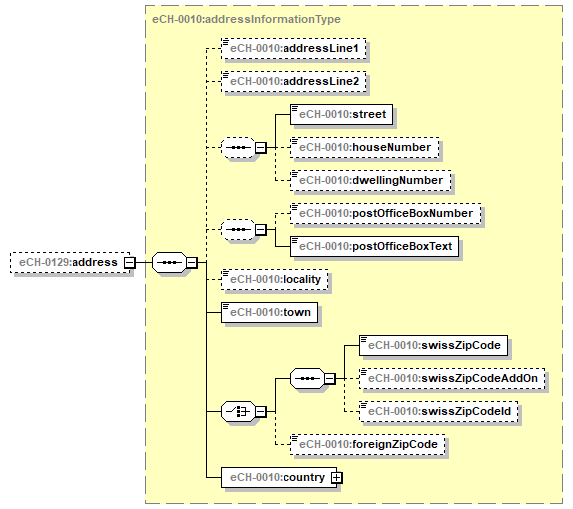

diagram | |||||||
namespace | http://www.ech.ch/xmlns/eCH-0129/5 | ||||||
type | eCH-0010:addressInformationType | ||||||
properties |
|
||||||
children | eCH-0010:addressLine1 eCH-0010:addressLine2 eCH-0010:street eCH-0010:houseNumber eCH-0010:dwellingNumber eCH-0010:postOfficeBoxNumber eCH-0010:postOfficeBoxText eCH-0010:locality eCH-0010:town eCH-0010:swissZipCode eCH-0010:swissZipCodeAddOn eCH-0010:swissZipCodeId eCH-0010:foreignZipCode eCH-0010:country | ||||||
source | <xs:element name="address" type="eCH-0010:addressInformationType" minOccurs="0"/> |
