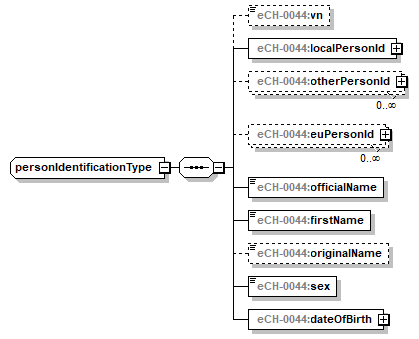

complexType personIdentificationType
diagram index_p754.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
children eCH-0044:vn eCH-0044:localPersonId eCH-0044:otherPersonId eCH-0044:euPersonId eCH-0044:officialName eCH-0044:firstName eCH-0044:originalName eCH-0044:sex eCH-0044:dateOfBirth
used by
element personIdentificationRoot/personIdentification
source <xs:complexType name="personIdentificationType">
  <xs:sequence>
    <xs:element name="vn" type="eCH-0044:vnType" minOccurs="0"/>
    <xs:element name="localPersonId" type="eCH-0044:namedPersonIdType"/>
    <xs:element name="otherPersonId" type="eCH-0044:namedPersonIdType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="euPersonId" type="eCH-0044:namedPersonIdType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="officialName" type="eCH-0044:baseNameType"/>
    <xs:element name="firstName" type="eCH-0044:baseNameType"/>
    <xs:element name="originalName" type="eCH-0044:baseNameType" minOccurs="0"/>
    <xs:element name="sex" type="eCH-0044:sexType"/>
    <xs:element name="dateOfBirth" type="eCH-0044:datePartiallyKnownType"/>
  </xs:sequence>
</xs:complexType>

element personIdentificationType/vn
diagram index_p755.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
type eCH-0044:vnType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 7560000000001
maxInclusive 7569999999999
source <xs:element name="vn" type="eCH-0044:vnType" minOccurs="0"/>

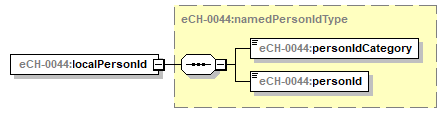

element personIdentificationType/localPersonId
diagram index_p756.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
type eCH-0044:namedPersonIdType
properties
content complex
children eCH-0044:personIdCategory eCH-0044:personId
source <xs:element name="localPersonId" type="eCH-0044:namedPersonIdType"/>

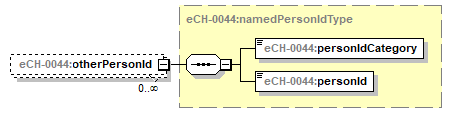

element personIdentificationType/otherPersonId
diagram index_p757.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
type eCH-0044:namedPersonIdType
properties
minOcc 0
maxOcc unbounded
content complex
children eCH-0044:personIdCategory eCH-0044:personId
source <xs:element name="otherPersonId" type="eCH-0044:namedPersonIdType" minOccurs="0" maxOccurs="unbounded"/>

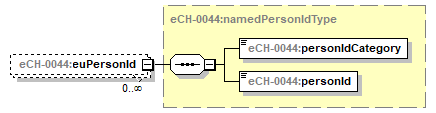

element personIdentificationType/euPersonId
diagram index_p758.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
type eCH-0044:namedPersonIdType
properties
minOcc 0
maxOcc unbounded
content complex
children eCH-0044:personIdCategory eCH-0044:personId
source <xs:element name="euPersonId" type="eCH-0044:namedPersonIdType" minOccurs="0" maxOccurs="unbounded"/>

element personIdentificationType/officialName
diagram index_p759.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
type eCH-0044:baseNameType
properties
content simple
facets
Kind Value Annotation
minLength 1
maxLength 100
source <xs:element name="officialName" type="eCH-0044:baseNameType"/>

element personIdentificationType/firstName
diagram index_p760.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
type eCH-0044:baseNameType
properties
content simple
facets
Kind Value Annotation
minLength 1
maxLength 100
source <xs:element name="firstName" type="eCH-0044:baseNameType"/>

element personIdentificationType/originalName
diagram index_p761.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
type eCH-0044:baseNameType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 100
source <xs:element name="originalName" type="eCH-0044:baseNameType" minOccurs="0"/>

element personIdentificationType/sex
diagram index_p762.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
type eCH-0044:sexType
properties
content simple
facets
Kind Value Annotation
enumeration 1
enumeration 2
enumeration 3
source <xs:element name="sex" type="eCH-0044:sexType"/>

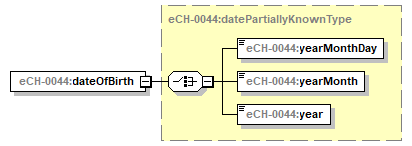

element personIdentificationType/dateOfBirth
diagram index_p763.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
type eCH-0044:datePartiallyKnownType
properties
content complex
children eCH-0044:yearMonthDay eCH-0044:yearMonth eCH-0044:year
source <xs:element name="dateOfBirth" type="eCH-0044:datePartiallyKnownType"/>
