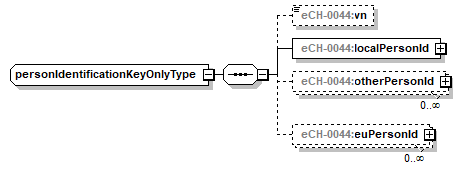

complexType personIdentificationKeyOnlyType
diagram index_p740.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
children eCH-0044:vn eCH-0044:localPersonId eCH-0044:otherPersonId eCH-0044:euPersonId
source <xs:complexType name="personIdentificationKeyOnlyType">
  <xs:sequence>
    <xs:element name="vn" type="eCH-0044:vnType" minOccurs="0"/>
    <xs:element name="localPersonId" type="eCH-0044:namedPersonIdType"/>
    <xs:element name="otherPersonId" type="eCH-0044:namedPersonIdType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="euPersonId" type="eCH-0044:namedPersonIdType" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element personIdentificationKeyOnlyType/vn
diagram index_p741.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
type eCH-0044:vnType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 7560000000001
maxInclusive 7569999999999
source <xs:element name="vn" type="eCH-0044:vnType" minOccurs="0"/>

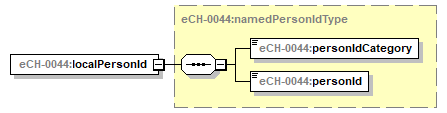

element personIdentificationKeyOnlyType/localPersonId
diagram index_p742.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
type eCH-0044:namedPersonIdType
properties
content complex
children eCH-0044:personIdCategory eCH-0044:personId
source <xs:element name="localPersonId" type="eCH-0044:namedPersonIdType"/>

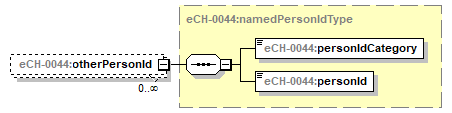

element personIdentificationKeyOnlyType/otherPersonId
diagram index_p743.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
type eCH-0044:namedPersonIdType
properties
minOcc 0
maxOcc unbounded
content complex
children eCH-0044:personIdCategory eCH-0044:personId
source <xs:element name="otherPersonId" type="eCH-0044:namedPersonIdType" minOccurs="0" maxOccurs="unbounded"/>

element personIdentificationKeyOnlyType/euPersonId
diagram index_p744.png
namespace http://www.ech.ch/xmlns/eCH-0044/4
type eCH-0044:namedPersonIdType
properties
minOcc 0
maxOcc unbounded
content complex
children eCH-0044:personIdCategory eCH-0044:personId
source <xs:element name="euPersonId" type="eCH-0044:namedPersonIdType" minOccurs="0" maxOccurs="unbounded"/>
