complexType organisationMailAddressInfoType

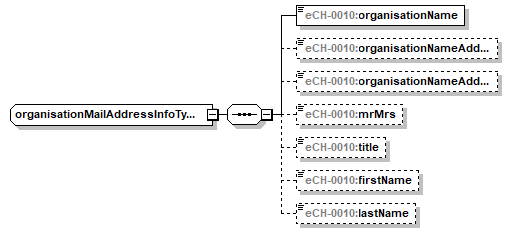

diagram index_p700.png
namespace http://www.ech.ch/xmlns/eCH-0010/6
children eCH-0010:organisationName eCH-0010:organisationNameAddOn1 eCH-0010:organisationNameAddOn2 eCH-0010:mrMrs eCH-0010:title eCH-0010:firstName eCH-0010:lastName
used by
elements mailAddressType/organisation organisationMailAddressType/organisation
source <xs:complexType name="organisationMailAddressInfoType">
  <xs:sequence>
    <xs:element name="organisationName" type="eCH-0010:organisationNameType"/>
    <xs:element name="organisationNameAddOn1" type="eCH-0010:organisationNameType" minOccurs="0"/>
    <xs:element name="organisationNameAddOn2" type="eCH-0010:organisationNameType" minOccurs="0"/>
    <xs:element name="mrMrs" type="eCH-0010:mrMrsType" minOccurs="0"/>
    <xs:element name="title" type="eCH-0010:titleType" minOccurs="0"/>
    <xs:element name="firstName" type="eCH-0010:firstNameType" minOccurs="0"/>
    <xs:element name="lastName" type="eCH-0010:lastNameType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element organisationMailAddressInfoType/organisationName
diagram index_p701.png
namespace http://www.ech.ch/xmlns/eCH-0010/6
type eCH-0010:organisationNameType
properties
content simple
facets
Kind Value Annotation
maxLength 60
source <xs:element name="organisationName" type="eCH-0010:organisationNameType"/>

element organisationMailAddressInfoType/organisationNameAddOn1
diagram index_p702.png
namespace http://www.ech.ch/xmlns/eCH-0010/6
type eCH-0010:organisationNameType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
maxLength 60
source <xs:element name="organisationNameAddOn1" type="eCH-0010:organisationNameType" minOccurs="0"/>

element organisationMailAddressInfoType/organisationNameAddOn2
diagram index_p703.png
namespace http://www.ech.ch/xmlns/eCH-0010/6
type eCH-0010:organisationNameType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
maxLength 60
source <xs:element name="organisationNameAddOn2" type="eCH-0010:organisationNameType" minOccurs="0"/>

element organisationMailAddressInfoType/mrMrs
diagram index_p704.png
namespace http://www.ech.ch/xmlns/eCH-0010/6
type eCH-0010:mrMrsType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
enumeration 1
enumeration 2
enumeration 3
source <xs:element name="mrMrs" type="eCH-0010:mrMrsType" minOccurs="0"/>

element organisationMailAddressInfoType/title
diagram index_p705.png
namespace http://www.ech.ch/xmlns/eCH-0010/6
type eCH-0010:titleType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
maxLength 50
source <xs:element name="title" type="eCH-0010:titleType" minOccurs="0"/>

element organisationMailAddressInfoType/firstName
diagram index_p706.png
namespace http://www.ech.ch/xmlns/eCH-0010/6
type eCH-0010:firstNameType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
maxLength 30
source <xs:element name="firstName" type="eCH-0010:firstNameType" minOccurs="0"/>

element organisationMailAddressInfoType/lastName
diagram index_p707.png
namespace http://www.ech.ch/xmlns/eCH-0010/6
type eCH-0010:lastNameType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
maxLength 30
source <xs:element name="lastName" type="eCH-0010:lastNameType" minOccurs="0"/>
