complexType kindOfConstructionWorkType

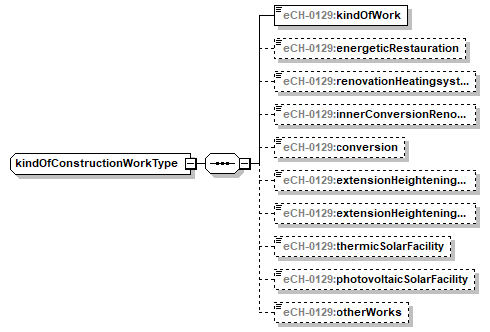

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
children	eCH-0129:kindOfWork eCH-0129:energeticRestauration eCH-0129:renovationHeatingsystem eCH-0129:innerConversionRenovation eCH-0129:conversion eCH-0129:extensionHeighteningHeated eCH-0129:extensionHeighteningNotHeated eCH-0129:thermicSolarFacility eCH-0129:photovoltaicSolarFacility eCH-0129:otherWorks
used by	element  kindOfConstructionWork
source	<xs:complexType name="kindOfConstructionWorkType">   <xs:sequence>     <xs:element name="kindOfWork" type="eCH-0129:kindOfWorkType"/>     <xs:element name="energeticRestauration" type="xs:boolean" minOccurs="0"/>     <xs:element name="renovationHeatingsystem" type="xs:boolean" minOccurs="0"/>     <xs:element name="innerConversionRenovation" type="xs:boolean" minOccurs="0"/>     <xs:element name="conversion" type="xs:boolean" minOccurs="0"/>     <xs:element name="extensionHeighteningHeated" type="xs:boolean" minOccurs="0"/>     <xs:element name="extensionHeighteningNotHeated" type="xs:boolean" minOccurs="0"/>     <xs:element name="thermicSolarFacility" type="xs:boolean" minOccurs="0"/>     <xs:element name="photovoltaicSolarFacility" type="xs:boolean" minOccurs="0"/>     <xs:element name="otherWorks" type="xs:boolean" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element kindOfConstructionWorkType/kindOfWork

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	eCH-0129:kindOfWorkType
properties	content  simple
facets	Kind  Value  Annotation enumeration  6001 enumeration  6002 enumeration  6007
source	<xs:element name="kindOfWork" type="eCH-0129:kindOfWorkType"/>

element kindOfConstructionWorkType/energeticRestauration

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="energeticRestauration" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/renovationHeatingsystem

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="renovationHeatingsystem" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/innerConversionRenovation

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="innerConversionRenovation" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/conversion

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="conversion" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/extensionHeighteningHeated

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="extensionHeighteningHeated" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/extensionHeighteningNotHeated

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="extensionHeighteningNotHeated" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/thermicSolarFacility

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="thermicSolarFacility" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/photovoltaicSolarFacility

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="photovoltaicSolarFacility" type="xs:boolean" minOccurs="0"/>

element kindOfConstructionWorkType/otherWorks

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="otherWorks" type="xs:boolean" minOccurs="0"/>
