complexType insuranceValueType

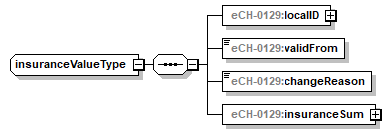

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
children	eCH-0129:localID eCH-0129:validFrom eCH-0129:changeReason eCH-0129:insuranceSum
used by	element  insuranceObjectType/insuranceValue
source	<xs:complexType name="insuranceValueType">   <xs:sequence>     <xs:element name="localID" type="eCH-0129:namedIdType"/>     <xs:element name="validFrom" type="xs:date"/>     <xs:element name="changeReason" type="eCH-0129:changeReasonType"/>     <xs:element name="insuranceSum" type="eCH-0129:insuranceSumType"/>   </xs:sequence> </xs:complexType>

element insuranceValueType/localID

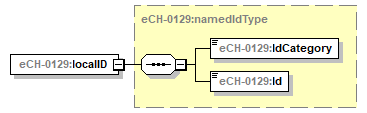

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	eCH-0129:namedIdType
properties	content  complex
children	eCH-0129:IdCategory eCH-0129:Id
source	<xs:element name="localID" type="eCH-0129:namedIdType"/>

element insuranceValueType/validFrom

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	xs:date
properties	content  simple
source	<xs:element name="validFrom" type="xs:date"/>

element insuranceValueType/changeReason

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	eCH-0129:changeReasonType
properties	content  simple
facets	Kind  Value  Annotation enumeration  1001 enumeration  1002 enumeration  1003 enumeration  1004 enumeration  1005 enumeration  1006
source	<xs:element name="changeReason" type="eCH-0129:changeReasonType"/>

element insuranceValueType/insuranceSum

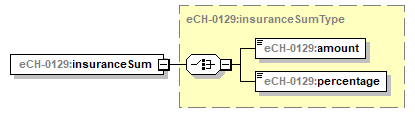

diagram
namespace	http://www.ech.ch/xmlns/eCH-0129/5
type	eCH-0129:insuranceSumType
properties	content  complex
children	eCH-0129:amount eCH-0129:percentage
source	<xs:element name="insuranceSum" type="eCH-0129:insuranceSumType"/>
