complexType fiscalOwnershipType

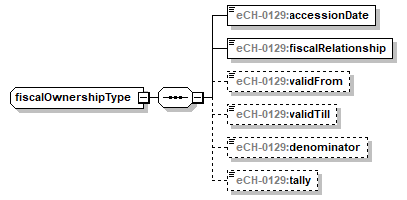

diagram index_p482.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:accessionDate eCH-0129:fiscalRelationship eCH-0129:validFrom eCH-0129:validTill eCH-0129:denominator eCH-0129:tally
used by
element fiscalOwnership
source <xs:complexType name="fiscalOwnershipType">
  <xs:sequence>
    <xs:element name="accessionDate" type="xs:date"/>
    <xs:element name="fiscalRelationship">
      <xs:simpleType>
        <xs:restriction base="xs:nonNegativeInteger">
          <xs:enumeration value="1"/>
          <xs:enumeration value="2"/>
          <xs:enumeration value="3"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="validFrom" type="xs:date" minOccurs="0"/>
    <xs:element name="validTill" type="xs:date" minOccurs="0"/>
    <xs:element name="denominator" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:totalDigits value="7"/>
          <xs:fractionDigits value="3"/>
          <xs:minInclusive value="0.001"/>
          <xs:maxInclusive value="100.000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="tally" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:decimal">
          <xs:totalDigits value="7"/>
          <xs:fractionDigits value="3"/>
          <xs:minInclusive value="0.001"/>
          <xs:maxInclusive value="100.000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element fiscalOwnershipType/accessionDate
diagram index_p483.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type xs:date
properties
content simple
source <xs:element name="accessionDate" type="xs:date"/>

element fiscalOwnershipType/fiscalRelationship
diagram index_p484.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type restriction of xs:nonNegativeInteger
properties
content simple
facets
Kind Value Annotation
enumeration 1
enumeration 2
enumeration 3
source <xs:element name="fiscalRelationship">
  <xs:simpleType>
    <xs:restriction base="xs:nonNegativeInteger">
      <xs:enumeration value="1"/>
      <xs:enumeration value="2"/>
      <xs:enumeration value="3"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element fiscalOwnershipType/validFrom
diagram index_p485.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type xs:date
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="validFrom" type="xs:date" minOccurs="0"/>

element fiscalOwnershipType/validTill
diagram index_p486.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type xs:date
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="validTill" type="xs:date" minOccurs="0"/>

element fiscalOwnershipType/denominator
diagram index_p487.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type restriction of xs:decimal
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 0.001
maxInclusive 100.000
totalDigits 7
fractionDigits 3
source <xs:element name="denominator" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:totalDigits value="7"/>
      <xs:fractionDigits value="3"/>
      <xs:minInclusive value="0.001"/>
      <xs:maxInclusive value="100.000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element fiscalOwnershipType/tally
diagram index_p488.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type restriction of xs:decimal
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 0.001
maxInclusive 100.000
totalDigits 7
fractionDigits 3
source <xs:element name="tally" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:decimal">
      <xs:totalDigits value="7"/>
      <xs:fractionDigits value="3"/>
      <xs:minInclusive value="0.001"/>
      <xs:maxInclusive value="100.000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
