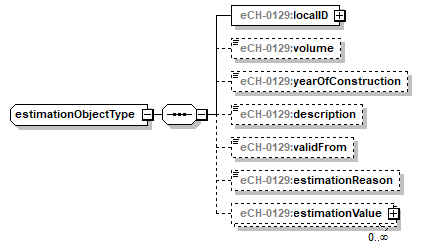

complexType estimationObjectType
diagram index_p467.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:localID eCH-0129:volume eCH-0129:yearOfConstruction eCH-0129:description eCH-0129:validFrom eCH-0129:estimationReason eCH-0129:estimationValue
used by
element estimationObject
complexType estimationObjectOnlyType
source <xs:complexType name="estimationObjectType">
  <xs:sequence>
    <xs:element name="localID" type="eCH-0129:namedIdType"/>
    <xs:element name="volume" type="eCH-0129:estimationVolumeType" minOccurs="0"/>
    <xs:element name="yearOfConstruction" type="eCH-0129:estimationYearOfConstructionType" minOccurs="0"/>
    <xs:element name="description" type="eCH-0129:estimationDescriptionType" minOccurs="0"/>
    <xs:element name="validFrom" type="xs:date" minOccurs="0"/>
    <xs:element name="estimationReason" type="eCH-0129:estimationReasonTextType" minOccurs="0"/>
    <xs:element name="estimationValue" type="eCH-0129:estimationValueType" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element estimationObjectType/localID
diagram index_p468.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:namedIdType
properties
content complex
children eCH-0129:IdCategory eCH-0129:Id
source <xs:element name="localID" type="eCH-0129:namedIdType"/>

element estimationObjectType/volume
diagram index_p469.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:estimationVolumeType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 5
maxInclusive 2000000
source <xs:element name="volume" type="eCH-0129:estimationVolumeType" minOccurs="0"/>

element estimationObjectType/yearOfConstruction
diagram index_p470.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:estimationYearOfConstructionType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1000
maxInclusive 2099
source <xs:element name="yearOfConstruction" type="eCH-0129:estimationYearOfConstructionType" minOccurs="0"/>

element estimationObjectType/description
diagram index_p471.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:estimationDescriptionType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 3
maxLength 1000
source <xs:element name="description" type="eCH-0129:estimationDescriptionType" minOccurs="0"/>

element estimationObjectType/validFrom
diagram index_p472.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type xs:date
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="validFrom" type="xs:date" minOccurs="0"/>

element estimationObjectType/estimationReason
diagram index_p473.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:estimationReasonTextType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 30
source <xs:element name="estimationReason" type="eCH-0129:estimationReasonTextType" minOccurs="0"/>

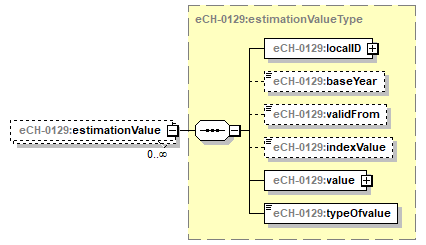

element estimationObjectType/estimationValue
diagram index_p474.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:estimationValueType
properties
minOcc 0
maxOcc unbounded
content complex
children eCH-0129:localID eCH-0129:baseYear eCH-0129:validFrom eCH-0129:indexValue eCH-0129:value eCH-0129:typeOfvalue
source <xs:element name="estimationValue" type="eCH-0129:estimationValueType" minOccurs="0" maxOccurs="unbounded"/>
