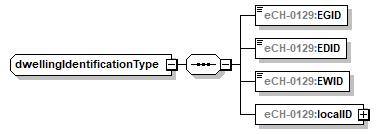

complexType dwellingIdentificationType
diagram index_p429.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:EGID eCH-0129:EDID eCH-0129:EWID eCH-0129:localID
source <xs:complexType name="dwellingIdentificationType">
  <xs:sequence>
    <xs:element name="EGID" type="eCH-0129:EGIDType"/>
    <xs:element name="EDID" type="eCH-0129:EDIDType"/>
    <xs:element name="EWID" type="eCH-0129:EWIDType"/>
    <xs:element name="localID" type="eCH-0129:namedIdType"/>
  </xs:sequence>
</xs:complexType>

element dwellingIdentificationType/EGID
diagram index_p430.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:EGIDType
properties
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 900000000
source <xs:element name="EGID" type="eCH-0129:EGIDType"/>

element dwellingIdentificationType/EDID
diagram index_p431.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:EDIDType
properties
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 90
source <xs:element name="EDID" type="eCH-0129:EDIDType"/>

element dwellingIdentificationType/EWID
diagram index_p432.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:EWIDType
properties
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 900
source <xs:element name="EWID" type="eCH-0129:EWIDType"/>

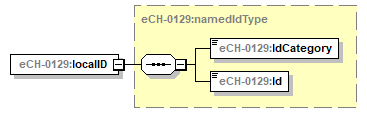

element dwellingIdentificationType/localID
diagram index_p433.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:namedIdType
properties
content complex
children eCH-0129:IdCategory eCH-0129:Id
source <xs:element name="localID" type="eCH-0129:namedIdType"/>
