complexType coordinatesBuildingType

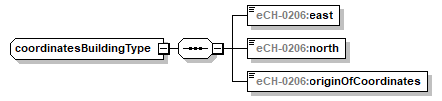

diagram index_p80.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
children eCH-0206:east eCH-0206:north eCH-0206:originOfCoordinates
used by
element buildingType/coordinates
source <xs:complexType name="coordinatesBuildingType">
  <xs:sequence>
    <xs:element name="east" type="eCH-0206:coordinatesEastType"/>
    <xs:element name="north" type="eCH-0206:coordinatesNorthType"/>
    <xs:element name="originOfCoordinates" type="eCH-0129:originOfCoordinatesType"/>
  </xs:sequence>
</xs:complexType>

element coordinatesBuildingType/east
diagram index_p81.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:coordinatesEastType
properties
content simple
facets
Kind Value Annotation
minInclusive 2480000.000
maxInclusive 2840000.999
totalDigits 10
fractionDigits 3
source <xs:element name="east" type="eCH-0206:coordinatesEastType"/>

element coordinatesBuildingType/north
diagram index_p82.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0206:coordinatesNorthType
properties
content simple
facets
Kind Value Annotation
minInclusive 1070000.000
maxInclusive 1300000.999
totalDigits 10
fractionDigits 3
source <xs:element name="north" type="eCH-0206:coordinatesNorthType"/>

element coordinatesBuildingType/originOfCoordinates
diagram index_p83.png
namespace http://www.ech.ch/xmlns/eCH-0206/2
type eCH-0129:originOfCoordinatesType
properties
content simple
facets
Kind Value Annotation
enumeration 901
enumeration 902
enumeration 903
enumeration 904
enumeration 905
enumeration 906
enumeration 909
source <xs:element name="originOfCoordinates" type="eCH-0129:originOfCoordinatesType"/>
