complexType constructionProjectIdentificationType

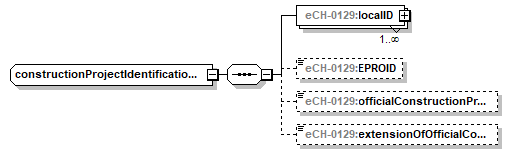

diagram index_p381.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:localID eCH-0129:EPROID eCH-0129:officialConstructionProjectFileNo eCH-0129:extensionOfOfficialConstructionProjectFileNo
used by
element constructionProjectType/constructionProjectIdentification
source <xs:complexType name="constructionProjectIdentificationType">
  <xs:sequence>
    <xs:element name="localID" type="eCH-0129:namedIdType" maxOccurs="unbounded"/>
    <xs:element name="EPROID" type="eCH-0129:EPROIDType" minOccurs="0"/>
    <xs:element name="officialConstructionProjectFileNo" type="eCH-0129:officialConstructionProjectFileNoType" minOccurs="0"/>
    <xs:element name="extensionOfOfficialConstructionProjectFileNo" type="eCH-0129:extensionOfOfficialConstructionProjectFileNoType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element constructionProjectIdentificationType/localID

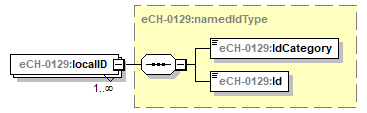

diagram index_p382.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:namedIdType
properties
minOcc 1
maxOcc unbounded
content complex
children eCH-0129:IdCategory eCH-0129:Id
source <xs:element name="localID" type="eCH-0129:namedIdType" maxOccurs="unbounded"/>

element constructionProjectIdentificationType/EPROID
diagram index_p383.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:EPROIDType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 900000000
source <xs:element name="EPROID" type="eCH-0129:EPROIDType" minOccurs="0"/>

element constructionProjectIdentificationType/officialConstructionProjectFileNo
diagram index_p384.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:officialConstructionProjectFileNoType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minLength 1
maxLength 15
source <xs:element name="officialConstructionProjectFileNo" type="eCH-0129:officialConstructionProjectFileNoType" minOccurs="0"/>

element constructionProjectIdentificationType/extensionOfOfficialConstructionProjectFileNo
diagram index_p385.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:extensionOfOfficialConstructionProjectFileNoType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 99
source <xs:element name="extensionOfOfficialConstructionProjectFileNo" type="eCH-0129:extensionOfOfficialConstructionProjectFileNoType" minOccurs="0"/>
