complexType cadastralSurveyorRemarkType

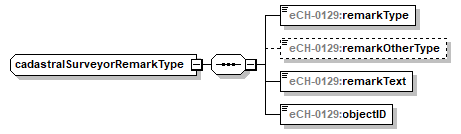

diagram index_p372.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:remarkType eCH-0129:remarkOtherType eCH-0129:remarkText eCH-0129:objectID
used by
element cadastralSurveyorRemark
source <xs:complexType name="cadastralSurveyorRemarkType">
  <xs:sequence>
    <xs:element name="remarkType" type="eCH-0129:remarkTypeType"/>
    <xs:element name="remarkOtherType" type="eCH-0129:remarkOtherTypeType" minOccurs="0"/>
    <xs:element name="remarkText" type="eCH-0129:remarkTextType"/>
    <xs:element name="objectID" type="eCH-0129:objectIDType"/>
  </xs:sequence>
</xs:complexType>

element cadastralSurveyorRemarkType/remarkType
diagram index_p373.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:remarkTypeType
properties
content simple
facets
Kind Value Annotation
enumeration 1
enumeration 2
enumeration 3
enumeration 4
enumeration 5
enumeration 6
source <xs:element name="remarkType" type="eCH-0129:remarkTypeType"/>

element cadastralSurveyorRemarkType/remarkOtherType
diagram index_p374.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:remarkOtherTypeType
properties
minOcc 0
maxOcc 1
content simple
source <xs:element name="remarkOtherType" type="eCH-0129:remarkOtherTypeType" minOccurs="0"/>

element cadastralSurveyorRemarkType/remarkText
diagram index_p375.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:remarkTextType
properties
content simple
source <xs:element name="remarkText" type="eCH-0129:remarkTextType"/>

element cadastralSurveyorRemarkType/objectID
diagram index_p376.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:objectIDType
properties
content simple
source <xs:element name="objectID" type="eCH-0129:objectIDType"/>
