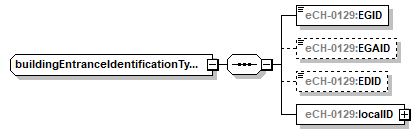

complexType buildingEntranceIdentificationType
diagram index_p277.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:EGID eCH-0129:EGAID eCH-0129:EDID eCH-0129:localID
source <xs:complexType name="buildingEntranceIdentificationType">
  <xs:sequence>
    <xs:element name="EGID" type="eCH-0129:EGIDType"/>
    <xs:element name="EGAID" type="eCH-0129:EGAIDType" minOccurs="0"/>
    <xs:element name="EDID" type="eCH-0129:EDIDType" minOccurs="0"/>
    <xs:element name="localID" type="eCH-0129:namedIdType"/>
  </xs:sequence>
</xs:complexType>

element buildingEntranceIdentificationType/EGID
diagram index_p278.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:EGIDType
properties
content simple
facets
Kind Value Annotation
minInclusive 1
maxInclusive 900000000
source <xs:element name="EGID" type="eCH-0129:EGIDType"/>

element buildingEntranceIdentificationType/EGAID
diagram index_p279.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:EGAIDType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 100000000
maxInclusive 900000000
source <xs:element name="EGAID" type="eCH-0129:EGAIDType" minOccurs="0"/>

element buildingEntranceIdentificationType/EDID
diagram index_p280.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:EDIDType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 90
source <xs:element name="EDID" type="eCH-0129:EDIDType" minOccurs="0"/>

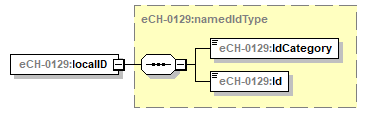

element buildingEntranceIdentificationType/localID
diagram index_p281.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:namedIdType
properties
content complex
children eCH-0129:IdCategory eCH-0129:Id
source <xs:element name="localID" type="eCH-0129:namedIdType"/>
