complexType buildingAuthorityOnlyType

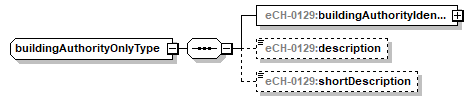

diagram index_p259.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type restriction of eCH-0129:buildingAuthorityType
properties
base eCH-0129:buildingAuthorityType
children eCH-0129:buildingAuthorityIdentificationType eCH-0129:description eCH-0129:shortDescription
source <xs:complexType name="buildingAuthorityOnlyType">
  <xs:complexContent>
    <xs:restriction base="eCH-0129:buildingAuthorityType">
      <xs:sequence>
        <xs:element name="buildingAuthorityIdentificationType" type="eCH-0097:organisationIdentificationType"/>
        <xs:element name="description" type="eCH-0129:longDescriptionType" minOccurs="0"/>
        <xs:element name="shortDescription" type="eCH-0129:shortDescriptionType" minOccurs="0"/>
      </xs:sequence>
    </xs:restriction>
  </xs:complexContent>
</xs:complexType>

element buildingAuthorityOnlyType/buildingAuthorityIdentificationType

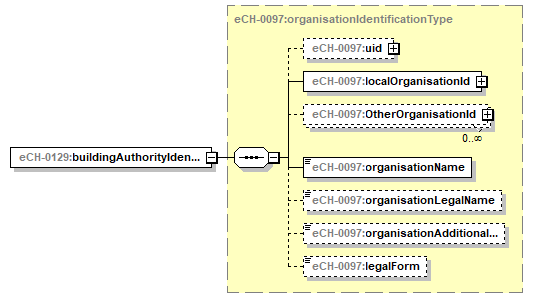

diagram index_p260.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0097:organisationIdentificationType
properties
content complex
children eCH-0097:uid eCH-0097:localOrganisationId eCH-0097:OtherOrganisationId eCH-0097:organisationName eCH-0097:organisationLegalName eCH-0097:organisationAdditionalName eCH-0097:legalForm
source <xs:element name="buildingAuthorityIdentificationType" type="eCH-0097:organisationIdentificationType"/>

element buildingAuthorityOnlyType/description
diagram index_p261.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:longDescriptionType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
maxLength 100
source <xs:element name="description" type="eCH-0129:longDescriptionType" minOccurs="0"/>

element buildingAuthorityOnlyType/shortDescription
diagram index_p262.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:shortDescriptionType
properties
minOcc 0
maxOcc 1
content simple
facets
Kind Value Annotation
maxLength 40
source <xs:element name="shortDescription" type="eCH-0129:shortDescriptionType" minOccurs="0"/>
