complexType areaType

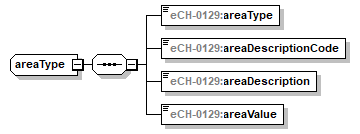

diagram index_p254.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
children eCH-0129:areaType eCH-0129:areaDescriptionCode eCH-0129:areaDescription eCH-0129:areaValue
used by
element area
source <xs:complexType name="areaType">
  <xs:sequence>
    <xs:element name="areaType" type="eCH-0129:areaTypeType"/>
    <xs:element name="areaDescriptionCode" type="eCH-0129:areaDescriptionCodeType"/>
    <xs:element name="areaDescription" type="eCH-0129:areaDescriptionType"/>
    <xs:element name="areaValue" type="eCH-0129:areaValueType"/>
  </xs:sequence>
</xs:complexType>

element areaType/areaType
diagram index_p255.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:areaTypeType
properties
content simple
facets
Kind Value Annotation
enumeration 1
enumeration 2
enumeration 3
source <xs:element name="areaType" type="eCH-0129:areaTypeType"/>

element areaType/areaDescriptionCode
diagram index_p256.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:areaDescriptionCodeType
properties
content simple
facets
Kind Value Annotation
minInclusive 0
maxInclusive 25
enumeration 0
enumeration 1
enumeration 2
enumeration 3
enumeration 4
enumeration 5
enumeration 6
enumeration 7
enumeration 8
enumeration 9
enumeration 10
enumeration 11
enumeration 12
enumeration 13
enumeration 14
enumeration 15
enumeration 16
enumeration 17
enumeration 18
enumeration 19
enumeration 20
enumeration 21
enumeration 22
enumeration 23
enumeration 24
enumeration 25
source <xs:element name="areaDescriptionCode" type="eCH-0129:areaDescriptionCodeType"/>

element areaType/areaDescription
diagram index_p257.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:areaDescriptionType
properties
content simple
facets
Kind Value Annotation
minLength 1
maxLength 100
source <xs:element name="areaDescription" type="eCH-0129:areaDescriptionType"/>

element areaType/areaValue
diagram index_p258.png
namespace http://www.ech.ch/xmlns/eCH-0129/5
type eCH-0129:areaValueType
properties
content simple
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 1000000000.0
source <xs:element name="areaValue" type="eCH-0129:areaValueType"/>
